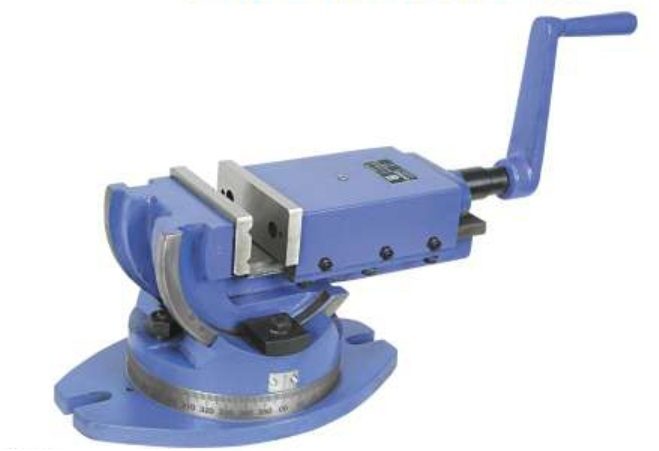

UNIQUE PRECISION TILTING & SWIVELLING VISE- CODE U312
- Fitted with Thrust Bearing for Smooth Movement.
- Positive locking to withstand heavy loads.
- Horizontal Swivel movement 360º.
- Vertical swivel movement 90º.
- Fine acme thread screw made out of special steel.
- Quick alignment to machine tables using a longitudinal slot.
- One vertical Two horizontal ‘V’ grooves are provided in hardened and ground jaws .
- Crank Handle is made of unbreakable steel provided with a spring loaded mechanism.
- Supplied with Stopper for Fast Production.
-
-
-

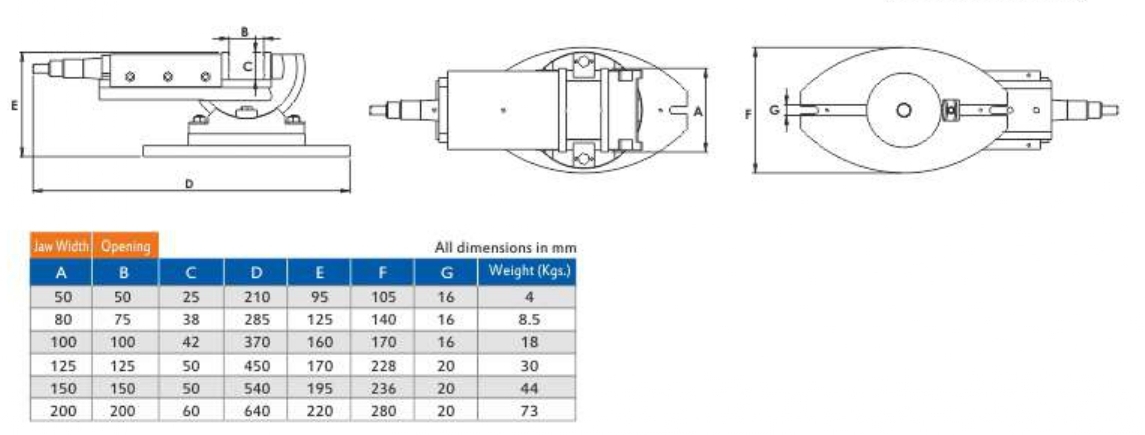

| JAW WIDTH |
OPENINGS |
|
|
|
|
|
|
| A |
B |
C |
D |
E |
F |
G |
WEIGHT (kgs). |
| 50 |
50 |
25 |
210 |
95 |
105 |
16 |
4 |
| 80 |
75 |
38 |
285 |
125 |
140 |
16 |
8.5 |
| 100 |
100 |
42 |
370 |
160 |
170 |
16 |
18 |
| 125 |
125 |
50 |
450 |
170 |
228 |
20 |
30 |
| 150 |
150 |
50 |
540 |
195 |
236 |
20 |
44 |
| 200 |
200 |
60 |
640 |
220 |
280 |
20 |
73 |
Features
- Horizontal swivel movement 360 degree.
- Vertical swivel movement of 90° in the A rotational axis.
- Positive locking to withstand heavy loads.
- Fitted with thrust bearing for smooth movement and less fatigue.
- High Quality ACME Steel screw.
- Vise body is made from high strength graded cast iron for toughness and rigidity.
- Jaws are made of special steel, which are hardened and precision ground.
- Jaws are provided with one vertical and two horizontal V’ grooves to hold round jobs rigidly.
- Quick alignment to machine table through longitudinal slot provided in the swivel base.
- Crank handle is made of unbreakable steel and consists of a spring loaded ball mechanism to provide a positive grip during operations.
