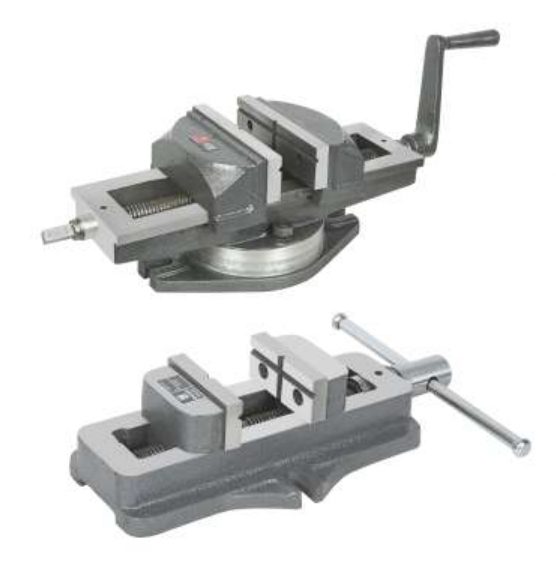

UNIQUE SELF CENTERING VICE – CODE U314
- Body made out of special graded casting
- Hardened steel jaws provided "v" grooves for round jobs both Horizontally & Vertically
- Special Steel Screw is provided for long life
- Swivel Base to rotate 360 degree is provided in U314S
-
-
|
U314 |
U314S |
| Size in Inches |
2 |
3 |
4 |
3 |
4 |
6 |
| Width of jaws in mm |
50 |
80 |
100 |
80 |
100 |
150 |
| Opening of jaws in mm |
80 |
110 |
130 |
110 |
140 |
190 |
| Depth of jaws in mm |
30 |
32 |
38 |
30 |
40 |
55 |
| Height overall in mm |
60 |
70 |
80 |
100 |
125 |
150 |
| Width overall in mm |
100 |
150 |
175 |
100 |
130 |
165 |
| Length overall in mm |
230 |
305 |
330 |
300 |
380 |
475 |
| Weight (Approx) in kgs. |
2.5 |
6 |
8.5 |
5.5 |
10 |
21 |
Features
- Self Centering vice allows for accurate centering of jobs automatically.
- Self Centering vice are specially useful in applications where the same operation is to be performed on workpieces of varying sizes
- Self Centring Vice, Fixed Base, body made out of special graded casting.
- Hardened Steel Jaws provided “v” grooves for round Jobs both Horizontally & Vertically.
- Special Steel Screw is provided for long life.
- Swivel Base to rotate 360º is provided in U314S.
