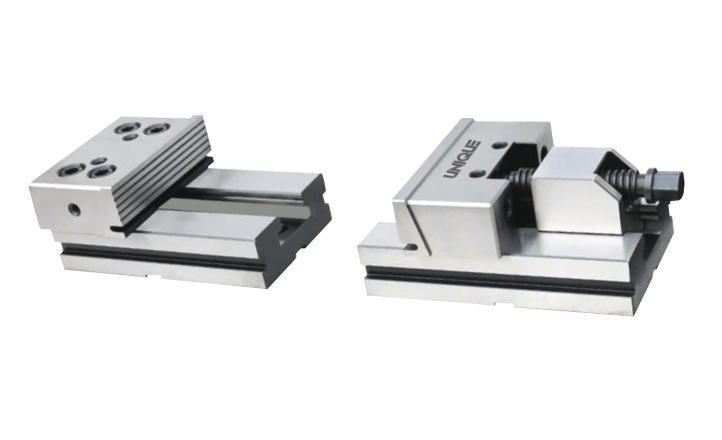

UNIQUE TWO PIECE MODULAR PRECISION MACHINE VISE CODE – U3434
- Unique Two Piece Modular Precision Machine Vide
- Hardness HRC 60 ± 2
-
-
-
| JAW WIDTH |
OPENING |
|
|
|
|
|
|
|
|
|
| A |
B |
C |
D |
E |
F |
G |
H |
I |
WIGHT (KGS) |
CLAMPING PRESSURE (KGF) |
| 150 |
ASSORTED |
50 |
ASSORTED |
100 |
150 |
50 |
16 |
125 |
26 |
3000 |
| 200 |
ASSORTED |
60 |
ASSORTED |
118 |
203 |
57 |
16 |
175 |
32 |
3500 |
Features
- Unlimited clamping range.
- Low Profile, Anti Lift Vise.
- Made of High Grade Alloy Steel, stabilized and hardened.
- Accuracy in squareness + 0.01/100 mm
- All vise parts are Case Hardened to HRC 60 + 2, to give maximum rigidity, high performance and No wear.
- As the bed height is maintained, multiple vises can be used in series so as to hold longer work pieces.
- Hammer Less Vise: Both Jaw Plates are in Pull-Down Angle, which pulls down the piece on to the vise bed / parallels for rigid clamping.
- Supplied with stopper for fast production.
