UNIQUE UNIVERSAL COMPOUND VICE – CODE U323

Code:

▪High quality FCD 60 vise body
▪Universal Compound Vice

Click to Expand

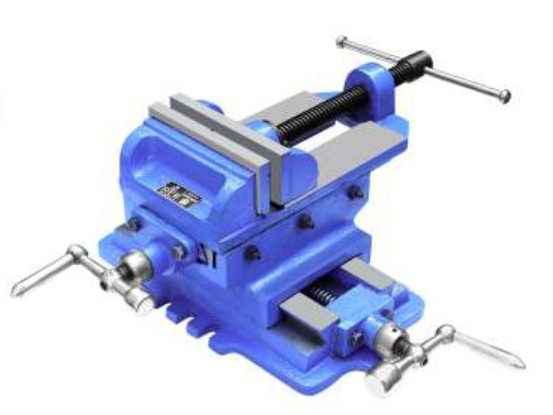

UNIQUE UNIVERSAL COMPOUND VICE – CODE U323

Product Overview

The Unique Universal Compound Vice (Code U323) is a precision-engineered workholding solution designed for industrial applications. Constructed with a high-quality FCD 60 vise body, this compound vice provides robust durability and stability for machining operations.

Key Features & Capabilities

High-Quality Construction: Manufactured with an FCD 60 grade vise body for enhanced structural integrity.
Universal Compound Design: Engineered for versatile positioning and multi-axis adjustment.

Technical Specifications

Parameter	Specification
Size	5 inches
Width of Jaws	125 mm
Depth of Jaws	55 mm
Opening of Jaws	135 mm
Overall Length	440 mm
Overall Height	170 mm
Overall Width	420 mm
Travel Bothway	175 x 150 mm
Weight (Approx.)	19 kg
