UNIQUE UNIVERSAL DIVIDING HEAD – CODE U352

UNIQUE UNIVERSAL DIVIDING HEAD – CODE U352

Product Overview

The Unique Universal Dividing Head (Code U352) is a precision industrial tool designed for versatile indexing operations. This unit is supplied fitted with a 150 mm or 200 mm self-centering chuck, providing robust work-holding capabilities for various machining setups.

Key Features & Capabilities

• Indexing Versatility: Capable of dividing at any angle.
• Gear Ratio: Features a 40:1 ratio between the worm and worm gear.
• Precision Construction: Equipped with a hardened and ground spindle, rigidly held in a taper roller bearing. The worm is also hardened and ground.
• Adjustable Orientation: The swivel head can be locked at any angle ranging from 10° below horizontal to 90° vertical.

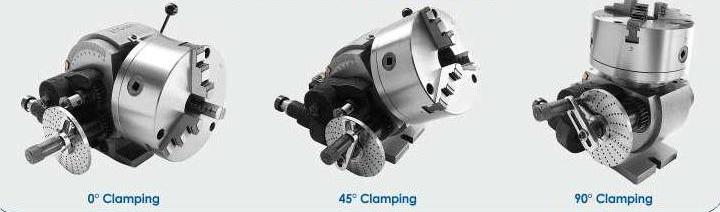

• Setup Flexibility: Supports multiple clamping configurations, including 0°, 45°, and 90° orientations.
• Included Equipment: Supplied with indexing plates and necessary accessories.

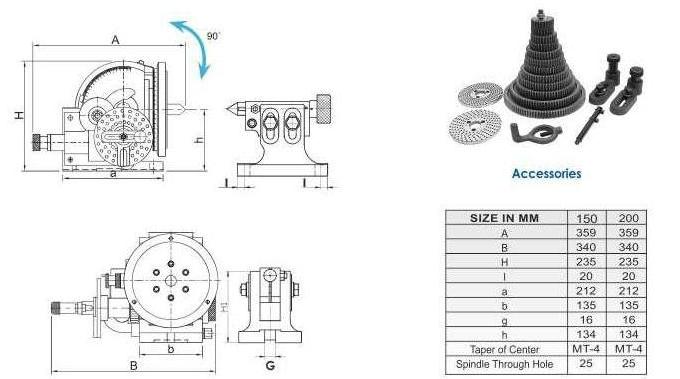

Technical Specifications
