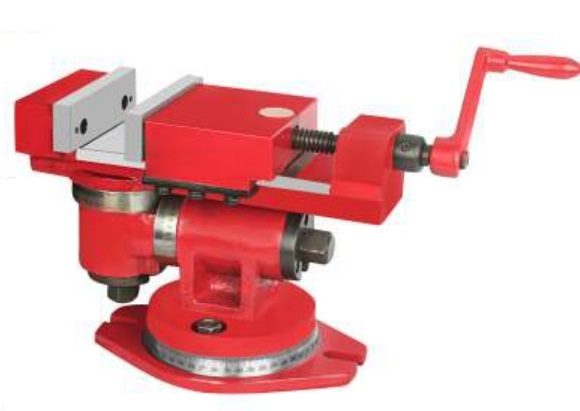

UNIQUE UNIVERSAL MACHINE VISE – CODE U313
- Accurately designed for use on surface, universal tool & cutter grinding machines.
- Unbreakable steel body.
- Accurately groung jaws made out of special steel for firm grip.
- All swivelling movements have positive locking and the job can be locked at any compound angle.
-
-
-
| JAW WIDTH |
OPENINGS |
|
|
|
|
|
|
| A |
B |
C |
D |
E |
F |
G |
WEIGHT (kgs). |
| 50 |
50 |
25 |
168 |
140 |
104 |
12 |
4.3 |
| 75 |
75 |
30 |
240 |
190 |
145 |
12 |
12 |
| 100 |
65 |
32 |
345 |
175 |
135 |
16 |
12 |
| 150 |
115 |
40 |
395 |
225 |
220 |
16 |
25 |
Features
- All swivel movements have positive locking and the job can be locked at any compound angle
- Accurately ground jaws made out of special steel for firm grip.
- High quality FCD 60 vise body.

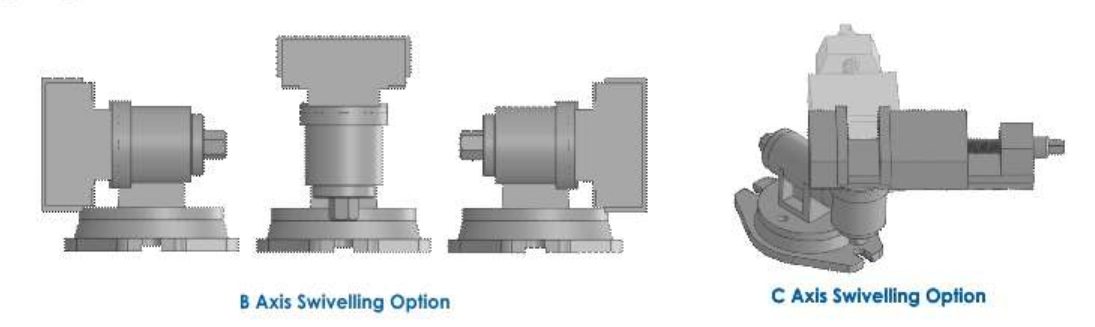

- Vise bed can be rotated to any angle between -90° & +90° in the B axis.
- The top vise bed can be rotated to any angle between 0° & 360° in the C axis.
- Quick alignment to machine table through longitudinal slots provided in the swivel base.
- Swivel base is fully graduated through 360°.
- Crank handle is made of unbreakable steel and consists of a spring loaded ball mechanism to provide a positive grip during operations.
- Designed for use on Surface, universal tool and cutter grinding machines.
