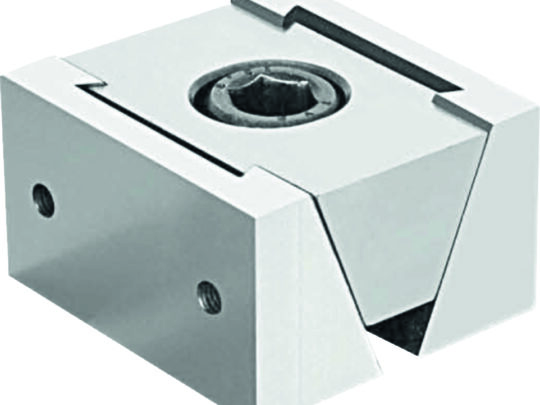

UNIQUE WEDGE CLAMP & ACCESORIES – CODE U2626

  • UNIQUE WEDGE CLAMP & ACCESORIES
  • COMPATIBLE WITH U2424 / U2424 COMPACT / MACHINE TABLE

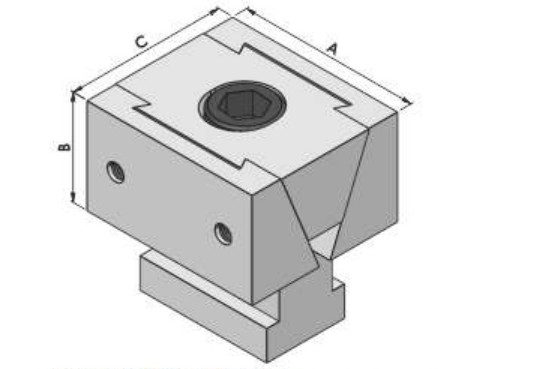

U2626 SW (Single Wedge)

A B C C Optimum C Full Weight (kgs.)
42 30 48 50 55 0.34
52 35 55 57 62 0.42
70 40 60 62 67 1

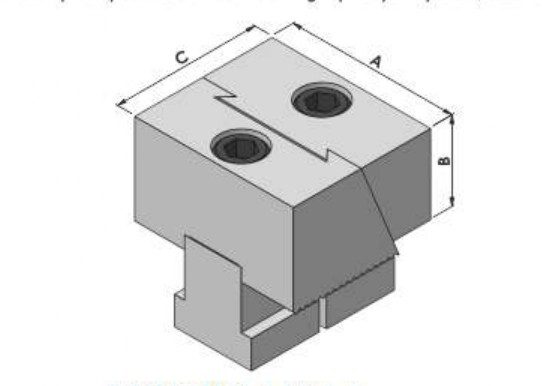

U2626 TW (Twin Mount)

A B C Weight (kgs.)
42 30 48 0.34
52 35 55 0.42
70 40 60 1

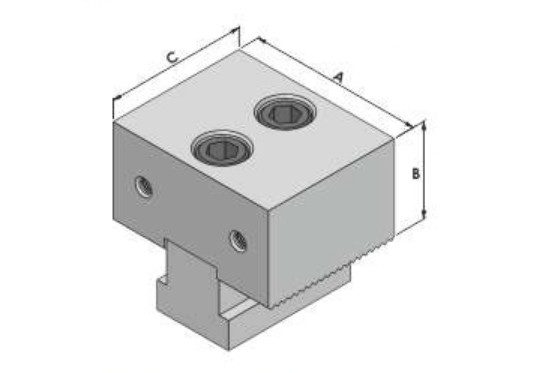

U2626 SM (Single Mount)

A B C Weight (kgs.)
42 30 33 0.25
52 35 40 0.40
70 40 45 0.80

U2626 TW (Twin Wedge)

A B C C Optimum C Full Weight (kgs.)
42 30 48 50 55 0.34
52 35 55 57 62 0.42
70 40 60 62 67 1



Features

  • Most rigid low profile clamps available in the market right now.
  • This vise is not limited to the maximum length of the base slide, as is the case with conventional slide based vises.
  • Can be accessorized with different jaws, using the threads on the moving faces, based upon the application.
  • Even the most challenging workpieces, either in size or in shape can be machined easily.
  • Increases productivity by maximizing the machine table capacity, at the same time increases tool accessibility.
  • Clamp body & accessories are of high quality alloy steel, case hardened to HRC 60 + 2.
