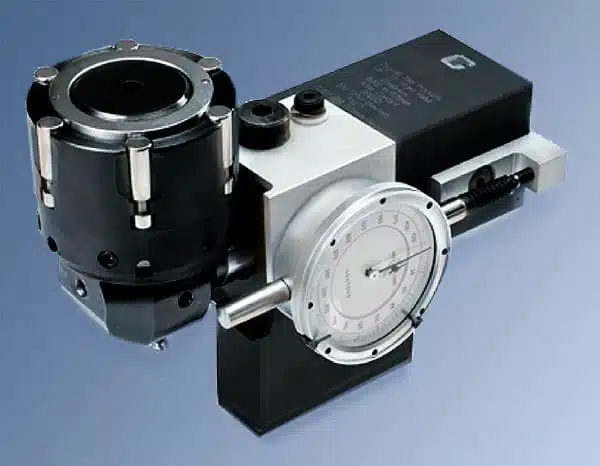

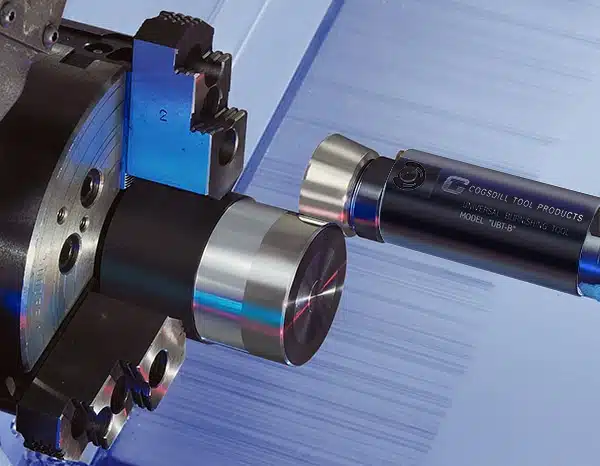

The Cogsdill Universal Burnishing Tools (Turning-Holder Style UBT-T4) are compact, high-precision burnishing tools designed for outside diameter (OD) finishing where limited space is available. Engineered for optimal burnishing pressure and low surface finishes, these tools are suitable for multi-spindle automatic and screw type machines, as well as conventional turning setups.
- Compact design tailored for applications with limited clearance.
- Suitable for use on multi-spindle automatic and screw type machines.
- Designed specifically to burnish outside diameters.

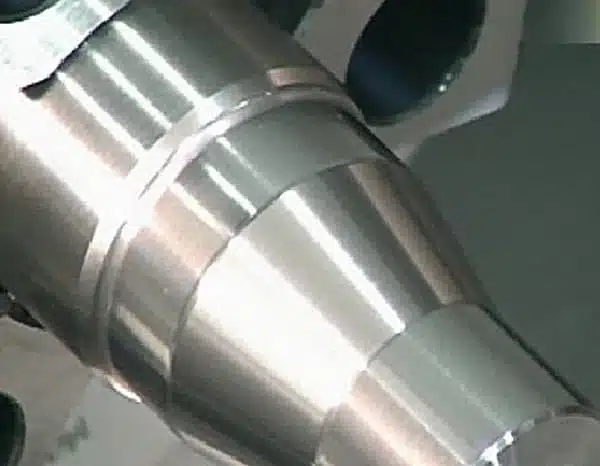

- Capable of achieving low, high-quality surface finishes.
- Adjustable configuration for optimum burnishing pressure.
- Low-cost replaceable burnishing rolls.
- Standard models available off-the-shelf.
- Available in both Left Hand ("LH") and Right Hand ("RH") configurations.
Dimensional Specifications (UBT-T4 Series)
- Shank / Body Height: 2.750 inches
- Shank Width: 1.000 inches
- Total Tool Length (UBT-T4-LH): 2.873 inches (overall body length 5.767 inches)
- Total Tool Length (UBT-T4-RH): 2.873 inches (overall body length 5.767 inches)
- Shank Diameter (Boring/Mounting section): 1.250 inches
- Corner Radius: R0.030 inches
- Body Width / Offset Dimensions: 1.562 inches height profile, 0.625 inches locating reference
