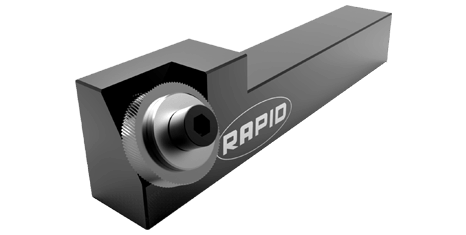

The RAPID Cut Knurling Tool Holder – C101 series is engineered for high-precision metal removal knurling operations. Designed for integration into CNC machines, sliding head machines, standard lathes, and autolathes, this fixed-head tool holder minimizes vibration while delivering superior visual profiles and close tolerances.
---
- Cut Knurling: Performs knurling via material removal for cleaner profiles and reduced bearing stress.
- Integrated Center Height: Ensures accurate positioning and consistent setup.
- 30° Lock Position: Built-in lock mechanism set at 30° for enhanced positional accuracy.
- Vibration Reduction: Minimizes chatter to achieve high-quality visual profiles and close manufacturing tolerances.
- Reduced Machine Load: Significantly lowers operational forces exerted on machine spindle and slide bearings.
- Fixed Head Design: Guarantees repeatable, stable, and reproducible processes.
---
---
The C101 holder supports multiple knurling wheel profiles depending on the selected configuration:
- RAA (Straight profile)
- BL / BR (Diagonal left/right profiles)
- RBL / RBR (Diamond profiles)
- AA (Left and Right turning configurations)
