FSA-K2 Desktop Material Testers

Integrated Force & Displacement Testers

desktop material testers-fsa-0-5k2

Ranges
Model FSA-0.5K2-xx FSA-1K2-xx FSA-2.5K2-xx
18 ozf FSA-0.5K2-1 FSA-1K2-1 FSA-2.5K2-1
4.4 lbf FSA-0.5K2-4 FSA-1K2-4 FSA-2.5K2-4
11 lbf FSA-0.5K2-11 FSA-1K2-11 FSA-2.5K2-11
44 lbf FSA-0.5K2-44 FSA-1K2-44 FSA-2.5K2-44
110 lbf FSA-0.5K2-110 FSA-1K2-110 FSA-2.5K2-110
–220 lbf   FSA-1K2-220 FSA-2.5K2-220
–550 lbf –   FSA-2.5K2-550
Standard Features
FSA-K2 Standard Features
  • Ultra rigid, 0.5 mm deflection at max. load
  • Selectable Manual, Increment, Single Cycle, Continuous Cycle and Force Control
  • Easy-to-program menus control speed, cycles, pause duration, high/low setpoints, time, auto start displacement, etc.
  • Highly visible EL electro luminescent display
  • Color-coded LED indicators and output signal for Go/No Go testing
  • Processes and transmits 2,000 data/sec.
  • USB, RS-232C, Digimatic, Analog outputs
  • Force Units: lbf, kgf, N (selectable)
    Displacement Units: inch, mm (selectable)
  • 1,000 data memory for recall or download
  • Tester includes Force-Recorder Pro software, cable, full set of standard attachments, AC adapter/charger, and calibration cert traceable to NIST.
Specifications
Model FSA-0.5K2 FSA-1K2 FSA-2.5K2
Max. Capacity 110 lbf 220 lbf 550 lbf
Stroke 240mm 295mm 310mm
Speed 10-300mm/min
Accuracy Force: ±0.2% F.S. ±1 digit; Displacement: ±0.1mm ±1 digit (under no load)
Dial Increment .015mm per click .01mm per click .05mm per click
Output USB, Serial (RS232C), Analog (Approx. ±2V), Comparator, Overload
Functions Travel limit, Overload protection, Force control, Emergency stop
Force Controlled Modes

Maintain Force Between High/Low Setpoints

Initial cross head speed is controlled by the start speed setting. Force control activates when applied force exceeds the low setpoint (and below the high setpoint) on the ZT series force gauge. The cross head maintains force between the low and high setpoint for the specified hold time,and then returns to the start position.

Increase Force to High Setpoint and Stop

Initial cross head speed is controlled by the start speed setting. When the applied force reaches the low set point of the ZT series force gauge, the test stand engages the measuring speed setting. The gauge stops when the applied force reaches the high set point on the ZT series force gauge. Ideal for non-destructive or creep testing. The cycle is repeated until the counter limit is reached.

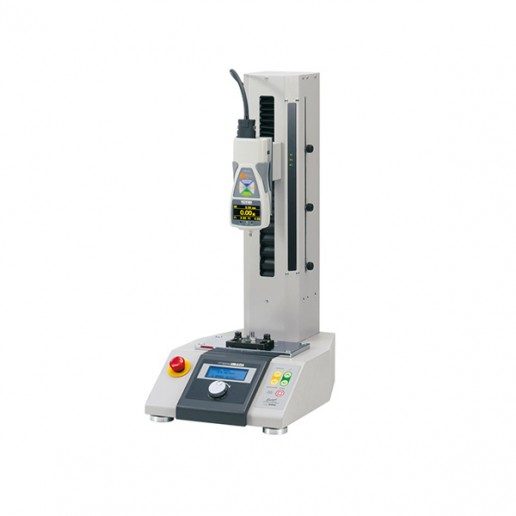

FSA-1KE Material Tester

Integrated Force & Displacement Testers

desktop material testers-fsa-1ke

Ranges
Model FSA-1KE-xx
Max. Capacity 275 lbf
18 ozf FSA-1KE-1
4.4 lbf FSA-1KE-4
11 lbf FSA-1KE-11
44 lbf FSA-1KE-44
110 lbf FSA-1KE-110
–275 lbf FSA-1KE-275
Standard Features
FSA-1KE Standard Features
  • Ultra rigid, 0.25 mm deflection at maximum load
  • Selectable Manual, Increment, Single Cycle, Continuous Cycle and Force Control
  • Easy-to-program menus control speed, cycles, pause duration, high/low setpoints, time, auto start displacement, etc.
  • Highly visible EL electro luminescent display
  • Color-coded LED indicators and output signal for Go/No Go testing
  • Processes and transmits 2,000 data/sec.
  • USB, RS-232C, Digimatic, Analog outputs
  • Force Units: lbf, kgf, N (selectable)
    Displacement Units: inch, mm (selectable)
  • 1,000 data memory for recall or download
  • Store up to 5 test configurations
  • Tester includes Force-Recorder Pro software, cable, full set of standard attachments, AC adapter/charger, and calibration cert traceable to NIST.
Specifications of Desktop Material Testers
Model FSA-1KE
Max. Capacity 275 lbf
Stroke 12.4in (315mm)
Speed .01 – 23.5 in/min
(10-300mm/min)
Accuracy Force: ±0.2% F.S. ±1 digit; Displacement: ±0.1mm ±1 digit (under no load)
Dial Increment .01mm per click
Output USB, Serial (RS232C), Analog (Approx. ±2V), Comparator, Overload
Functions Travel limit, Overload protection, Force control, Emergency stop
