INSIZE CONCENTRCITY GAGES (CODE – 4726)

Code:

▪With ball bearing : high stability, long working life
▪Accuracy : 2μm
▪Optional Accessory : dial test indicator

Click to Expand

INSIZE CONCENTRICITY GAGES (CODE – 4726)

Product Overview

The INSIZE Concentricity Gages (Code – 4726) are precision inspection instruments designed for quick-positioning and mass measurement applications. Equipped with high-stability ball bearings for a long working life, this series includes models featuring either fixed stands (high accuracy) or universal stands (convenient operation).

Key Features & Capabilities

High Stability & Longevity: Built with integrated ball bearings to ensure high stability and an extended working life.
Precision Accuracy: High-precision measurement capability with an accuracy of 2µm.
Quick-Positioning Design: Engineered for rapid measurement tasks and mass manufacturing inspection workflows.
Stand Options: Available in fixed stand configurations for high-accuracy applications or universal stand configurations for enhanced operational convenience.
Optional Accessories: Dial test indicators are available as optional accessories (not included as standard).

Technical Specifications & Ordering Matrix

Code	Applicable Diameter	Remarks
4726-1	Ø4-40mm	Fixed stand, high accuracy, inconvenient operation
4726-2	Ø2-40mm	Fixed stand, high accuracy, inconvenient operation
4726-11	Ø4-40mm	Universal stand, low accuracy, convenient operation
4726-21	Ø2-40mm	Universal stand, low accuracy, convenient operation

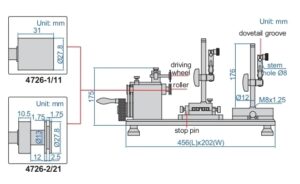

Operational Guidelines & Dimensions

Measuring Distance: To maintain the specified 2µm accuracy, the distance between the measuring point and the roller must be kept under 30mm (<30mm).
Base Dimensions: Base unit measures 456mm (L) x 202mm (W).
