KRISTEEL SCREW PITCH GAUGE

The Screw Pitch Gauge is a precision measuring tool used to quickly identify and verify the pitch of internal and external threads.
Manufactured from high-quality hardened steel, it features accurately machined blades for reliable thread measurement.
Ideal for workshops, manufacturing, maintenance, and quality inspection applications.

Buy Now

Download Catalog

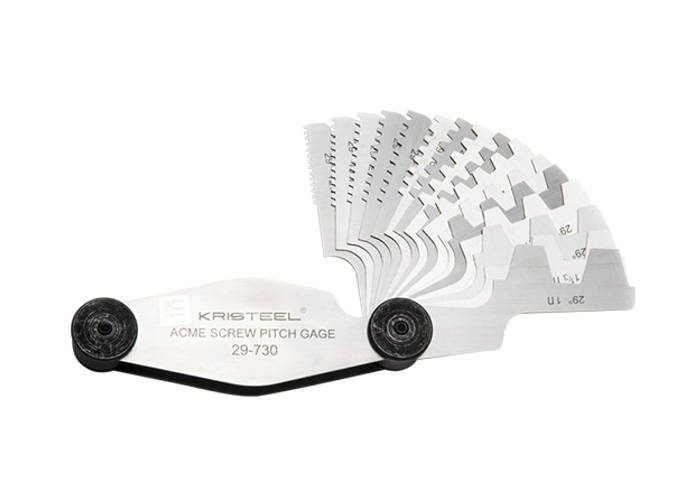

Acme Screw Pitch Gauge

Model No	No. of Leaves	Range
APG	16	10n TO 1n

Model No	No. of Leaves	Range
SPG	52	Metric 60° – 0.25 to 6mm & whitworth 55° – 4 to 62 TPI

To determine the TPI of Acme Threads of leadscrew.
Gauge made of stainless Steel by EDM Wire cutting and fine blanking process.
Gauge have 16 blades Duly fine edge profiled, Numbered TPI size on each blade.
Useful gauge in toolroom to check the leadscrew threading tool and to inspect the leadscrew.
Gauge is packed Plastic Box with Acme thread data sheet for Instant reference.
MATERIAL: 0.8 thick Stainless Steel 420 H & T.
RANGE: 0n to 1n (16 blades)°
ACCURACY: 10.04 mm.
FINISH: POLISHED BY TUMBLING

To check and determine the screws pitches for ISO Metric threads and With worth 55 degree and United Nations threads unf/unc 60°.
MATERIAL: Carbon Steel
RANGE: 30 leaves 4-80 tpi (55°) and Metric 60°
LEASTCOUNT: –
FINISH: POLISHED
