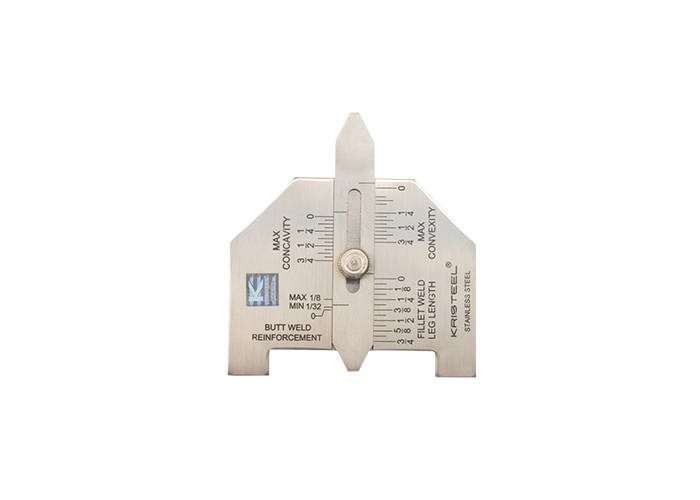

KRISTEEL WELDING GAUGE AUTOMATIC (AUWG)
- This rugged gauge, fabricated in Stainless steel, will measure the important dimensions of weld preparations and of completed Butt and Fillet welds.
- It is intended for general fabrication work in the shop or on-site and rapidly measures the following weld features: Tolerance of convexity, tolerance of reinforcement, concavity and underfill, determine size of fillet weld.
- Scales graduated in metric units, Supplied in a protective case and Instruction leaflet.
Available other models:
- Bridge Cam type Weld gauge,
- Multi-Purpose Weld gauge
- MATERIAL: Base in Stainless Steel 430 thick-2.0 and scale in S.S.202 thick = 1.0 mm
- RANGE: as per given in following diagrams.
- FINISH: Polished.
