• Indicator built into gage frame for maximum ruggedness
  • Lift lever for one hand operation
  • Continuous reading dials with revolution counter for absolute measurement of thin materials, plastic films and small parts
  • 6.3 mm / .25“ diameter, flat steel contacts

Technical data

Order no. Product type Measuring range inches Graduation value inch Probe_path_inch Size of measuring surface in mm
2050446
22P-11
0 – .10″
.0001”
0.025 inch
6.3 mm / 0.25″ steel contacts
2050447
22P-15
0 – .50″
.001″
0.25 inch
6.3 mm / 0.25″ steel contacts
2050449
22P-20
0 – 1″
.001″
0.25 inch
6.3 mm / 0.25″ steel contacts

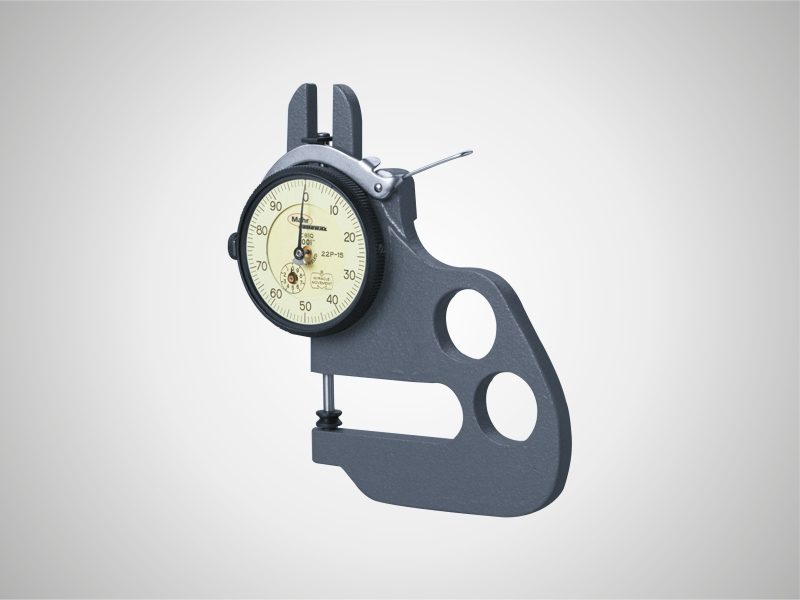

MARAMETER 22P-20M PORTABLE THICKNESS GAGES

  • Indicator built into gage frame for maximum ruggedness
  • Lift lever for one hand operation
  • Continuous reading dials with revolution counter for absolute measurement of thin materials, plastic films and small parts
  • 6.3 mm / .25“ diameter, flat steel contacts

Technical data

Order no. Product type Measuring range mm Throat depth mm Graduation value mm Size of measuring surface in mm
2050445
22P-10M
0 – 2.54
28.6 mm
0.002 mm
6.3 mm / 0.25″ steel contacts
2050448
22P-15M
0 – 12.7
50 mm
0.01 mm
6.3 mm / 0.25″ steel contacts
2050450
22P-20M
0 – 25
50 mm
0.01 mm
6.3 mm / 0.25″ steel contacts
