• Maximum wear resistance due to carbide ball anvils
  • Constant measuring force due to built-in spring, eliminating user influence
  • Anvils, measuring heads, holder, spacer (intermediate piece) and depth extensions form a very comprehensive modular system which can rapidly be converted to measure further gear sizes
  • When ordering please state the required ball diameter

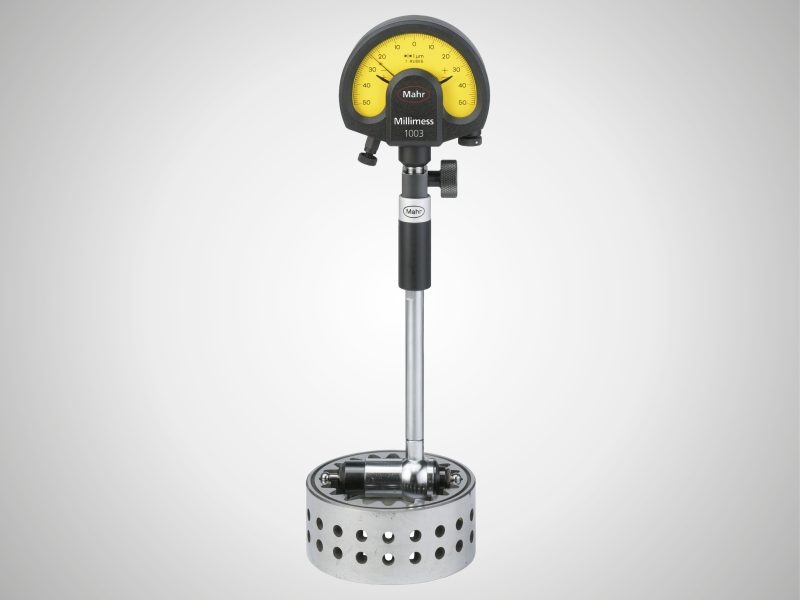

Measuring Head

Technical data

Order no. Product type Measuring range mm Dimension over balls MdK Repeatability fw (µm) Error limit Ge (µm)
4485000
844 z1
23.5 – 26.5
26 – 130.5
1 µm
6 µm
4485001
844 z2
46 – 49
48.5 – 333
1 µm
6 µm
