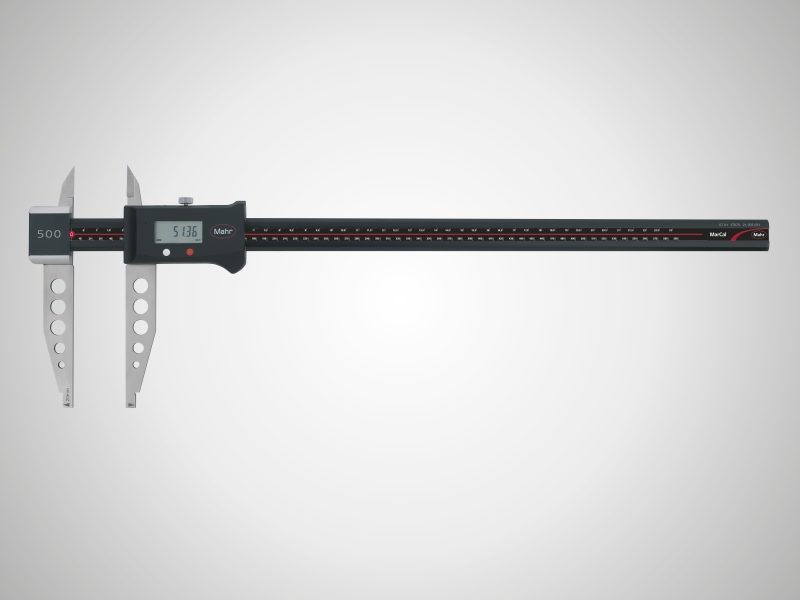

MARCAL 18 ESA DIGITAL WORKSHOP CALIPER

High contrast analog display Locking screw above Rounded measuring blades for inside measurements Prisma guide ways for a more smooth and even movement Measuring surfaces made of steel Measuring blades for outside measurements To reduce the overall weight the slide and beam are made from aluminum and are coated with a hard anodized surface coating
  • High contrast analog display
  • Locking screw above
  • Rounded measuring blades for inside measurements
  • Prisma guide ways for a more smooth and even movement
  • Measuring surfaces made of steel
  • Measuring blades for outside measurements
  • To reduce the overall weight the slide and beam are made from aluminum and are coated with a hard anodized surface coating (1100 HV)
  • Dirt wipers are integrated in the slide
  • Opto RS232C (only 300 mm version)
  • none
  • Battery
  • Instruction manual
  • Case
  • Battery life approx. 2 years

Height of digits

  • 12 mm



Order no. Measuring range mm Measuring range inches Resolution mm/inch Error limit (mm) Error limit inches Standard
4112620
0 – 300
0 – 12″
0.01 / .0005″
0.04 mm
.0015″
Factory standard
4112621
0 – 500
0 – 20″
0.01 / .0005″
0.05 mm
.002″
Factory standard
4112622
0 – 800
0 – 32″
0.01 / .0005″
0.07 mm
.0025″
Factory standard
4112623
0 – 1000
0 – 40″
0.01 / .0005″
0.08 mm
.003″
Factory standard



Functions

  • ON/OFF
  • RESET (set display to zero)
  • mm/inch
  • HOLD (storage of measured values)
  • PRESET (enter anumerical value) from range 500 mm
