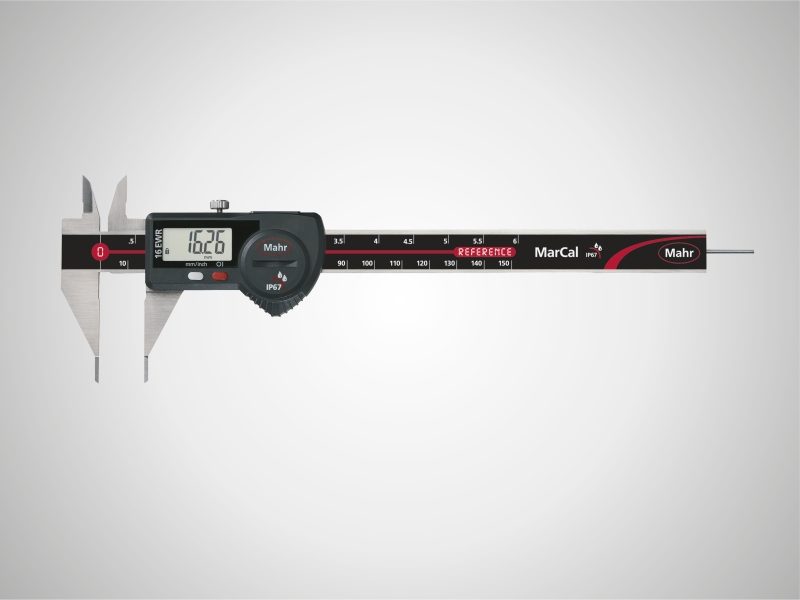

The Mahr MarCal 16 EWR-SM (Order No. 4103076) is a high-precision digital caliper engineered for demanding industrial metrology applications. Featuring IP67-rated protection against dust, coolants, and lubricants, this caliper ensures reliable performance in harsh workshop environments. Built with a hardened stainless steel slide and beam, it incorporates Mahr’s advanced Reference System for immediate measurement readiness without the need for constant zero-setting.
- Robust Construction: Features a slide and beam constructed from hardened stainless steel, a lapped guideway, and a raised guideway designed specifically to protect the scale from wear.
- Environmental Protection: IP67-certified resistance against dust, coolants, and lubricants, supplemented by integrated dirt wipers within the slide.
- Advanced Reference System: Enables immediate measurements upon power-up, eliminating the need for repeated zero-setting and maximizing operational efficiency.
- High-Contrast Display: Equipped with a high-contrast display featuring an 8.5 mm digit height for clear, error-free readability.
- Versatile Measurement Options: Includes a measuring blade for inside measurements, a step measuring function, and a round depth rod.
- Data Connectivity: Supports versatile data transmission options, including USB, Opto RS232C, and Digimatic interfaces via connection cables.
- Long Battery Life: Powered by an internal battery with an approximate service life of 3 years.
- Standard Package Includes: Digital caliper, battery, instruction manual, and protective case.
Integrated Functions
- ON/OFF and AUTO-ON / OFF
- mm/inch conversion
- LOCK function (key lock to prevent accidental setting changes)
- RESET (sets the display to zero at any position)
- DATA (enables data transmission via connection cable)
