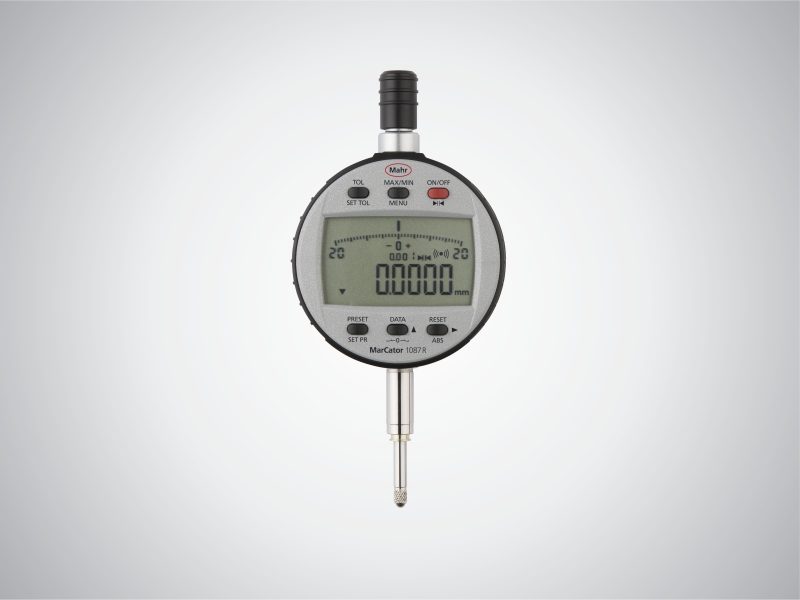

Digital indicator
 Digital indicator  Digital indicator  Digital indicator  Digital indicator  Digital indicator

Technical data

Order no. Product type Measuring span in mm Measuring span (inches) Resolution Resolution inches Graduation value mm Graduation value inch Range of analog display mm Range of analog display inches Error limit (mm) Repeatability mm Standard Measuring force (N) IP protection category Height of digits
4337663
1087 Ri
12.5 mm
.5″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05
.00005″ / .0001” / .0002” / .0005″ / .001″ / .002″
± 0,01 / ± 0,02 / ± 0,04 / ± 0,1 / ± 0,2
± .0004″ / ± .001” / ± .002″ / ± .004″ / ± .01”
0.004 mm
0.001 mm
Factory standard
0.65 – 0.85
IP 42
8.5 mm
4337665
1087 Ri
25 mm
1″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05
.00005″ / .0001” / .0002” / .0005″ / .001″ / .002″
± 0,01 / ± 0,02 / ± 0,04 / ± 0,1 / ± 0,2
± .0004″ / ± .001” / ± .002″ / ± .004″ / ± .01”
0.004 mm
0.001 mm
Factory standard
0.65 – 0.9
IP 42
8.5 mm
4337667
1087 Ri
50 mm
2″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05
.00005″ / .0001” / .0002” / .0005″ / .001″ / .002″
± 0,01 / ± 0,02 / ± 0,04 / ± 0,1 / ± 0,2
± .0004″ / ± .001” / ± .002″ / ± .004″ / ± .01”
0.007 mm
0.001 mm
Factory standard
1.25 – 2.7
IP 42
8.5 mm

Functions

  • 0 (set the analog display to zero)
  • ABS (display can be set to zero without losing reference to preset)
  • AUTO-ON / OFF
  • DATA (data transmission via connection cable)
  • Factor (adjustable)
  • LOCK (individual button lock)
  • MAX/MIN memory for searching the reversal point
  • ON/OFF
  • PRESET (for entering a numerical value)
  • RANGE (switch the measuring range and resolution)
  • RESET (set display to zero)
  • TIR (MAX-MIN) for testing flatness and concentricity
  • TOL (enter tolerance limit values)
  • Reversal of counting direction
  • mm/inch
