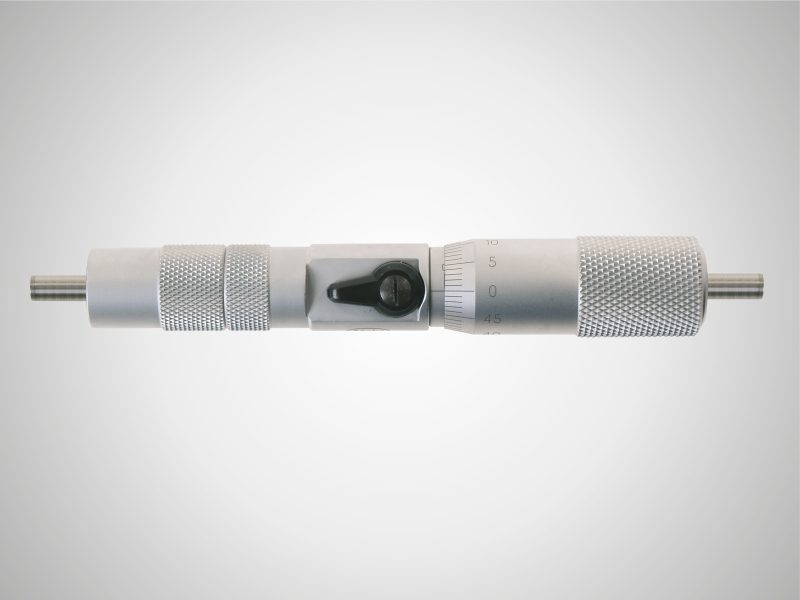

MICROMAR 44 CB INSIDE MICROMETER WITH REDUCED MEASURING FACES

MICROMAR 44 CB INSIDE MICROMETER WITH REDUCED MEASURING FACES

Operating and display units with satin chrome finish Rigid, lightweight tubular construction Stainless spindle is hardened throughout and ground Locking device Carbide tipped spherical measuring faces Interchangeable extension 44 Cv contains cylindrical gage rods that are spring mounted in protective sleeves for the extension of the measuring range Protection sleeves have a satin chrome finish

Operating and display units with satin chrome finish
Rigid, lightweight tubular construction
Stainless spindle is hardened throughout and ground
Locking device
Carbide tipped spherical measuring faces
Interchangeable extension 44 Cv contains cylindrical gage rods that are spring mounted in protective sleeves for the extension of the measuring range
Protection sleeves have a satin chrome finish
measuring head 44 CB with end piece
case

Inside micrometer

Technical Data

Order no.	Measuring range mm	Graduation value mm	Error limit µm	Spindle thread pitch_mm	Error limit
4167906	175 – 200	0,01	7 µm	0.5 mm	4+(l/100)µm l= length of the combination in mm
4167912	250 – 275	0,01	9 µm	0.5 mm	4+(l/100)µm l= length of the combination in mm
4167921	275 – 300	0,01	9 µm	0.5 mm	4+(l/100)µm l= length of the combination in mm
4167922	150 – 175	0,01	7 µm	0.5 mm	4+(l/100)µm l= length of the combination in mm
