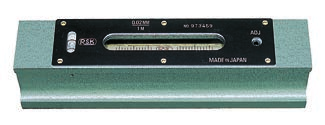

The RSK Precision Block Level Bottle is a high-accuracy leveling instrument designed for precision industrial metrology and alignment applications. Manufactured and inspected in compliance with the JIS B 7510 standard, this tool is available in multiple size variations (150 mm, 200 mm, 250 mm, and 300 mm) to suit varied precision leveling requirements.
- Manufacturing Standards: Manufactured and inspected under the JIS B 7510 standard.
- Accuracy & Precision: Main bubble features precise all-range accuracy (±0.2 scale for Grade AA).
- Thermal Insulation: Integrated insulating material prevents heat transfer from operator handling (applicable to Grade AA and Grade A).
- Adjustable Bubble Chamber: Equipped with a manually adjustable bubble chamber to control the length of the bubble (applicable to Grade AA and Grade A).
- Measurement Capabilities: Designed to measure Flatness (◎), Straightness (〇), and Parallelism (〇).
Dimensions and Weights (Grade AA / Grade A Series)
