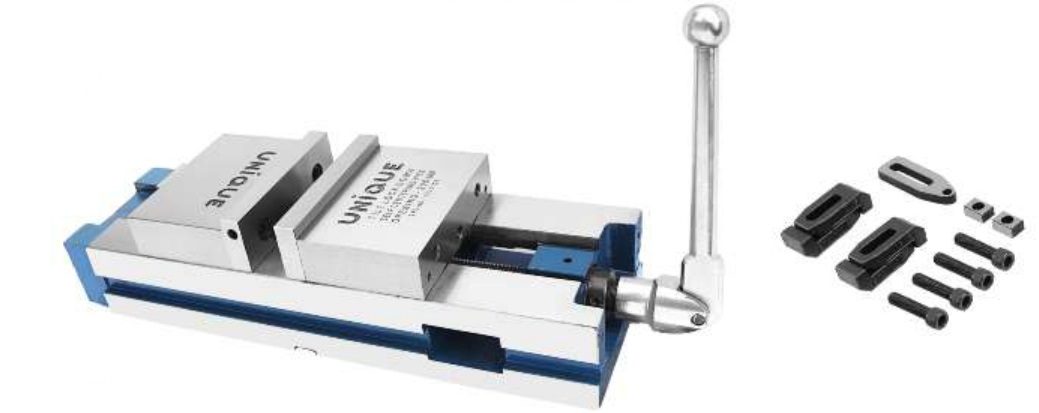

UNIQUE ANGLE LOCK SELF CENTERING VISE – CODE U350 SCV
- High quality FCD 60 vise body, with flame hardened guideways for better wear resistance.
- Vise can be clamped normally or on either of it's two sides.
- Hardened Jaw Plates.
- Anti lift hammer less vise.
- Fitted with thrust bearing for smooth movement.
- Both Top and Bottom of the vise are precision ground.
- Chip clearance holes, no dead pockets.
* Supplied with stopper for fast production.
* Accuracy in squareness ‡ 0.02mm / 100 mm.
-
-
-

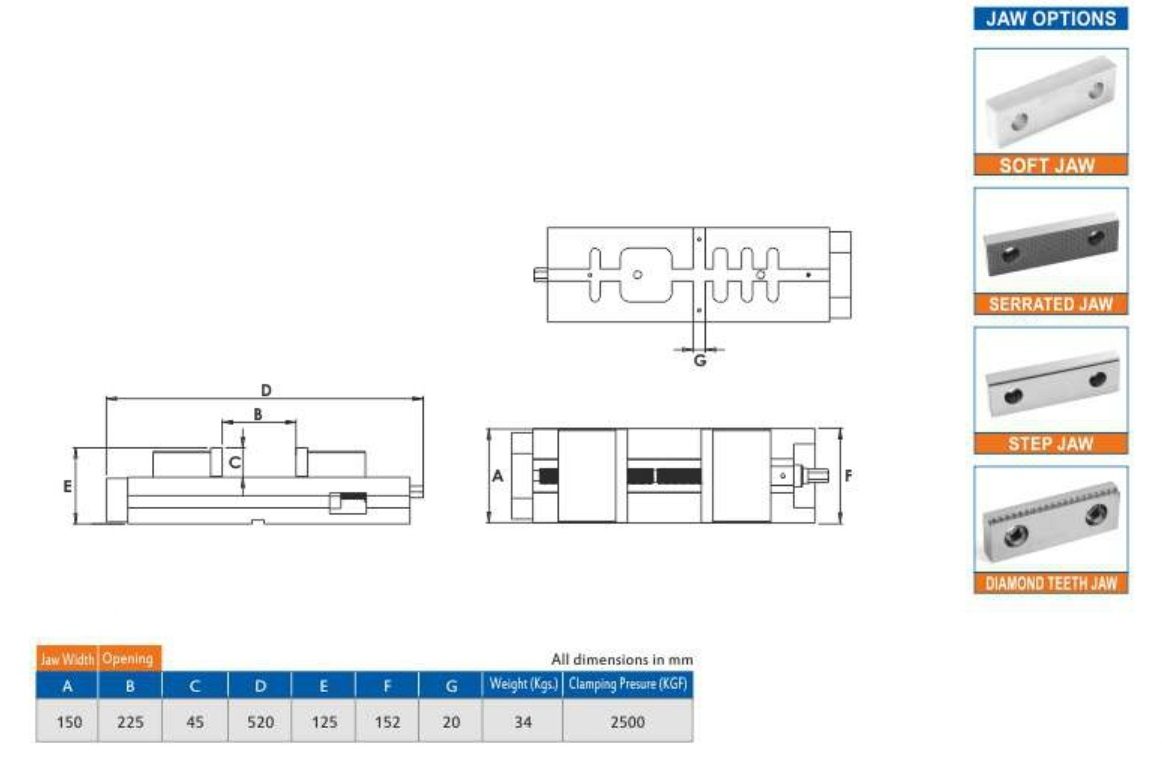

| JAW WIDTH |
OPENINGS |
|
|
|
|
|
|
|
| A |
B1 |
C |
D |
E |
F |
G |
WEIGHT(kgs) |
CLAMPING PRESSURE (KGF) |
| 150 |
225 |
45 |
550 |
125 |
152 |
20 |
34 |
2500 |
Features
- This vice can be clamped vertical or either side.
- High clamping force can be achieve by effortless handle movement which eliminates hammering on handle.
- Hardened jaws maintain accuracy for long time.
- Enhanced body Structure reduces the deflection in operation while the vice mounted vertical or horizontal.
- Ductile iron body.
- Sealed bearing system reduces clamping pressure and increases bearing life.
- Accuracy in parallelism & squareness with in 0.02/100mm.
- No work piece tilt after clamping.
- All parts are interchangeable .
- Tenon and tenon slots provided for effortless truing of vice.
- Supplied with Stopper for Fast Production.
