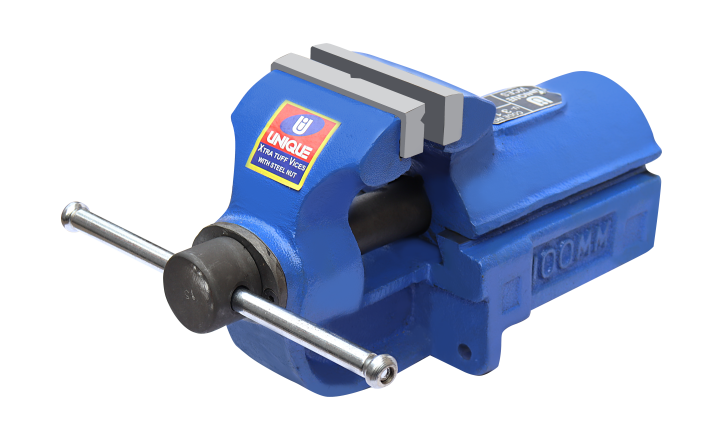

UNIQUE BENCH VICE (GERMAN TYPE) CODE – U316

Product Overview

The Unique Bench Vice (German Type), Model U316, is a precision-engineered rear jaw sliding bench vice designed for industrial applications. Constructed for durability and long-term performance, this vice features high-tensile steel forging for both the screw and nut, ensuring robust clamping force and operational reliability.

Key Features & Capabilities

Design: Rear jaw sliding bench vice (German Type).
Construction: High-tensile steel forging used for the screw and nut.
Precision: Hardened and ground jaws for enhanced grip and accuracy.
Durability: Nut and screw are matched with the same degree of threads to ensure extended service life.
Maintenance: All components are fully interchangeable and available as individual spares.
Applications: Ideal for use in tool rooms and the automobile industry.

Technical Specifications

Parameter	4" Model	5" Model	6" Model
Width of Jaws (mm)	100	125	150
Opening of Jaws (mm)	120	145	175
Depth of Jaws (mm)	80	90	80
Height Overall (mm)	150	175	190
Width Overall (mm)	140	155	170
Length Overall (mm)	340	360	475
Weight (App. in Kg.)	17	20.5	36
