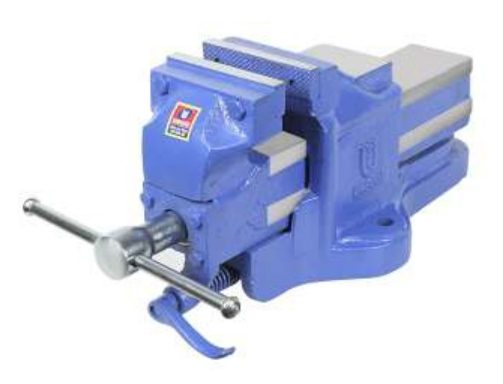

UNIQUE BENCH VICE (QUICK ACTION) CODE – U327
- Bench Vice (Quick Action) are equipped with quick grip mechanism which provide instant opening or closing of the jaws when trigger is pressed.
- Convention plane screw action may be used when desired.
- Twin guide slide.
- High quality steel fine pitch screw moves in bronze nut.
-
-
| SIZE IN INCHES |
4 |
4.1/2 |
5 |
6 |
| Width of jaws in mm |
100 |
115 |
125 |
150 |
| Opening of jaws in mm |
150 |
165 |
170 |
230 |
| Depth of jaws in mm |
64 |
65 |
85 |
90 |
| Height Overall |
190 |
195 |
215 |
220 |
| Width Overall |
170 |
180 |
190 |
230 |
| Length Overall |
435 |
445 |
520 |
550 |
| Weight (App. in kgs.) |
18 |
21 |
25.5 |
31.5 |
Features
- Heavy Duty Sturdy Built to with stand heavy load of work.
- Screw is fine pitched out of selected steel.
- Nut properly machined for xtra Tuff grip.
- These vices are equipped with quick grip mechanism which provide instant opening or closing of the jaws when trigger is pressed.
- Convention plane screw action may be used when desired.
- Twin guide slide.
- High quality steel fine pitch screw moves in bronze nut.
