UNIQUE DRILL PRESS VICE PRECISION – CODE U347

Code:

▪High quality FCD 60 vise body
▪"v" for round Jobs is provided vertically and horizontally.
▪Special Steel Hardened jaws.
▪Ideal for drilling operations

Click to Expand

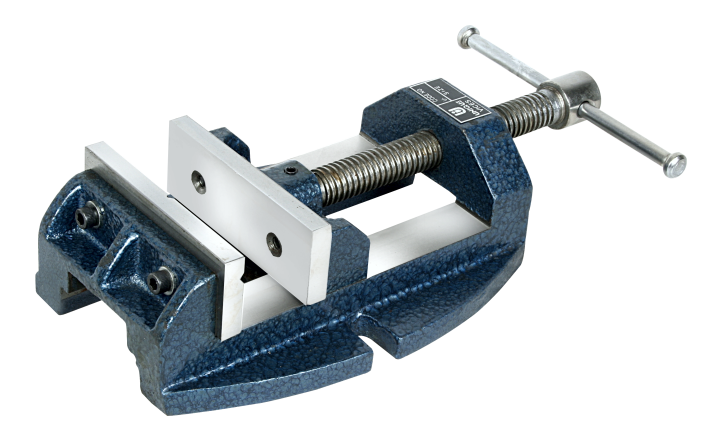

UNIQUE DRILL PRESS VICE PRECISION – CODE U347

Product Overview

The Unique Drill Press Vice Precision (Code U347) is a high-quality workholding solution engineered for precision drilling operations. Constructed with a durable FCD 60 vise body, this tool is designed to provide stability and accuracy for industrial machining tasks.

Key Features & Capabilities

High-Quality Construction: Manufactured with a robust FCD 60 vise body for enhanced durability.
Versatile Workholding: Features integrated "V" grooves, allowing for the secure clamping of round workpieces in both vertical and horizontal orientations.
Hardened Jaws: Equipped with special steel hardened jaws to ensure long-term wear resistance and reliable gripping force.
Application: Specifically optimized for drilling operations.

Technical Specifications

Parameter	3" Model	4" Model	5" Model
Width of jaws (mm)	75	100	125
Opening of jaws (mm)	75	100	125
Depth of jaws (mm)	35	40	50
Height Overall (mm)	55	70	78
Width Overall (mm)	112	147	180
Length Overall (mm)	195	250	325
Weight (Approx. in kgs)	2.6	4.8	8.5
