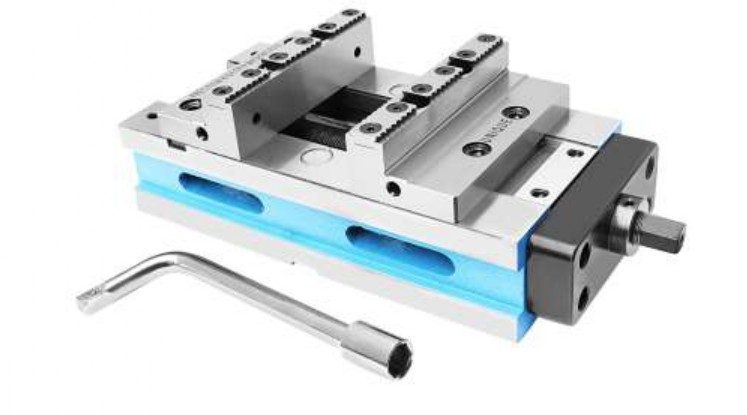

UNIQUE PRECISION HIGH CRIP MACHINE VISE – CODE U2121

  • Precision High Grip Machine Vice

  • Hardened Guide Ways

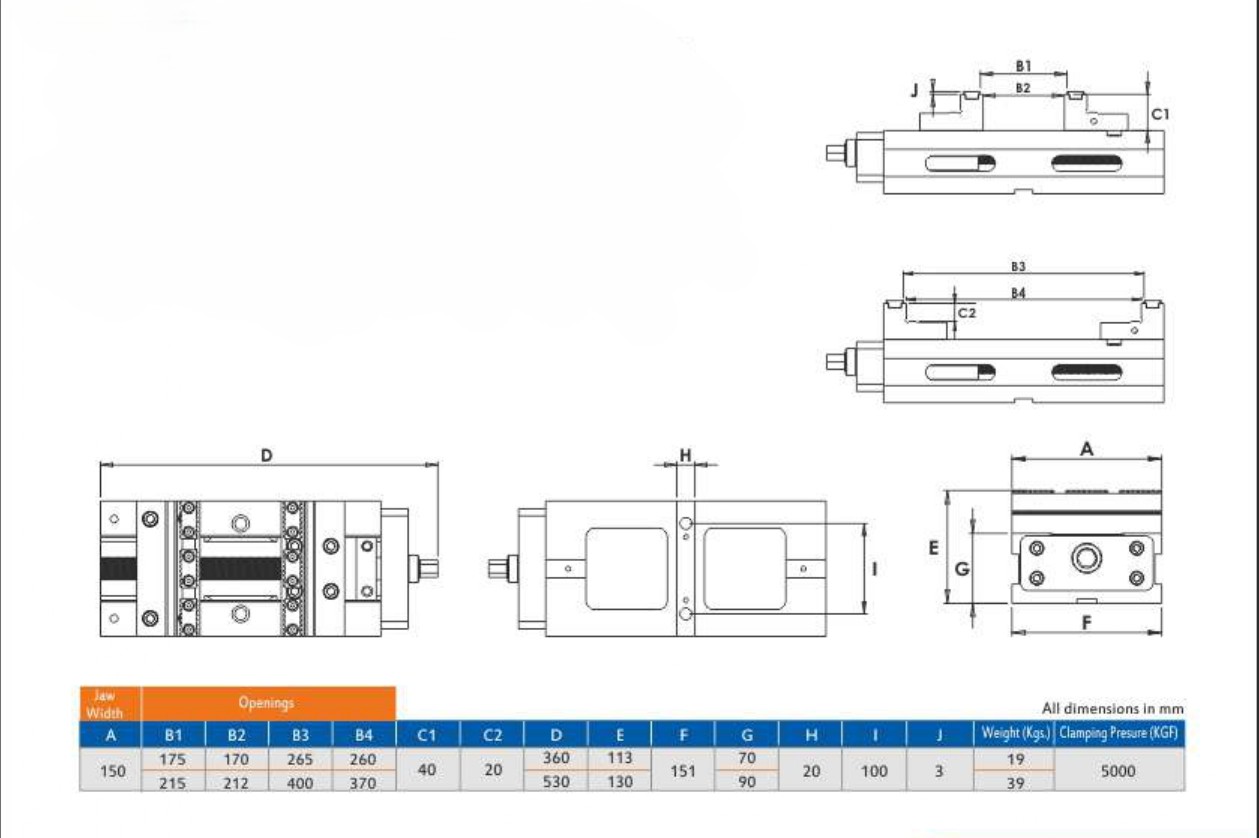

JAW WIDTH OPENING
A B1 B2 B3 B4 C1 C2 D E F G H I J WIGHT (KGS) CLAMPING PRESSURE (KGF)
150 175 170 265 260 40 20 360 113 151 70 20 100 3 19 5000
215 212 400 370 530 130 90 39

Features

  • Specially designed for Precision milling, Grinding and CNC Operations.
  • High quality alloy steel jaws, case hardened to HRC 60 + 2.
  • High quality FCD 60 vise body, with flame hardened guideways for better wear resistance.
  • Top and bottom vise faces are parallel well within + 0.02 mm / 100 mm.
  • High accuracy in squareness, within + 0.02 mm / 100 m.
  • Jaws in normal position and reverse position have 2 different clamping areas.
  • Tenon and Tenon slots are provided for effortless truing of the machine vise to the machine table.

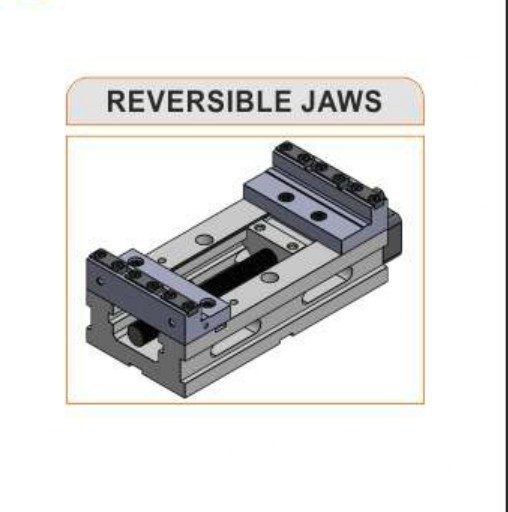

  • Jaws are reversible, so as to provide additional clamping range.
