UNIQUE PRECISION MILLING MACHINE VISE – CODE U348 N

  • Fitted with Thrust Bearing for Smooth Movement Sturdy & accurately made machine vices from graded casting.
  • Body and base are made of special high strength fine-grain Cast iron for toughness and rigidity.
  • Moving Jaw run in long Prismatic slides with provision for wear adjustment.
  • The removable hardened steel Jaws. Fix jaw provided with "V" grooves.
  • The totally enclosed acme thread adjusting screw with a replacable screw bushing & thrust collar.

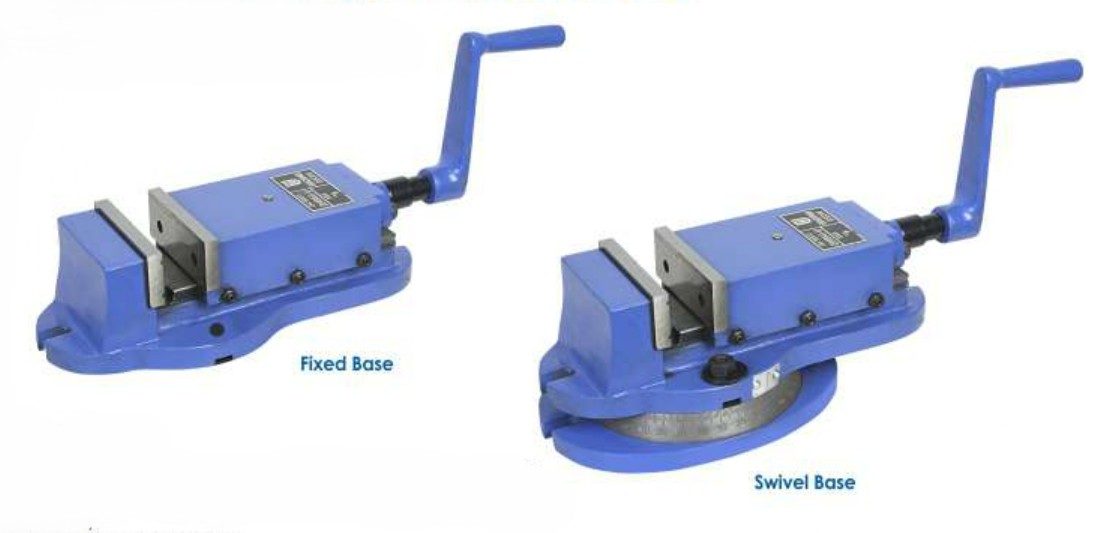

  • The vice can be fitted to the tool table with or without the 360º graduated base.
  • The vice can be centered using longitude tenon slots. Supplied complete with handle.
  • Crank handle is made of unbreakable steel provided with a spring loaded mechanism providing positive grip.
  • Supplied with Stopper for Fast Production.

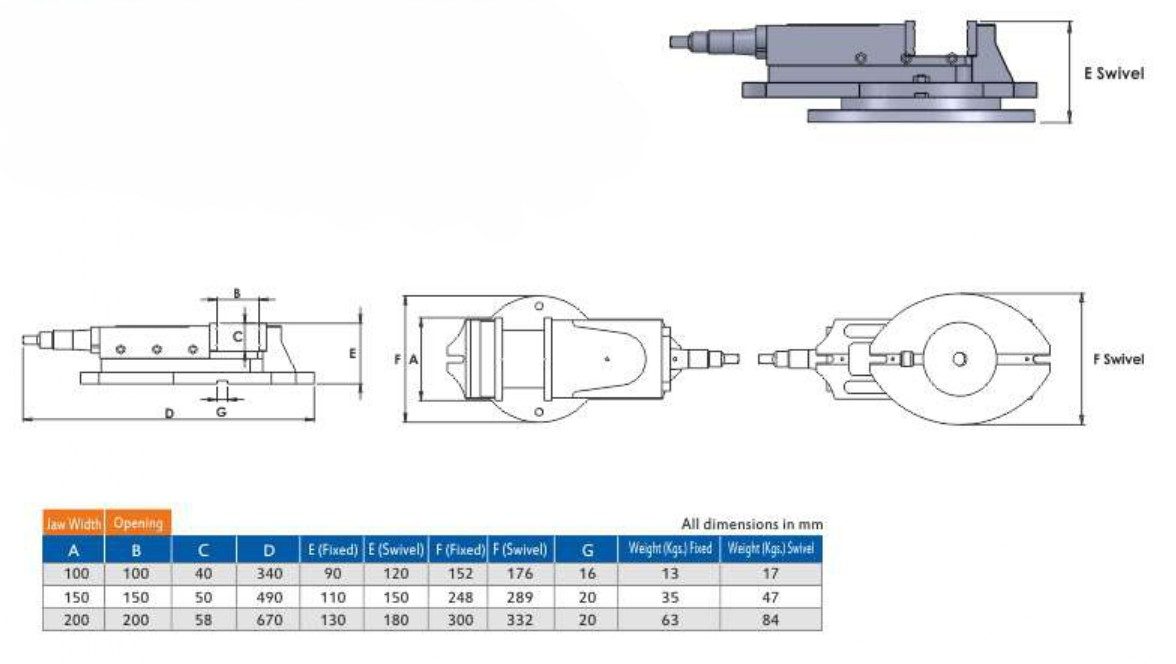

JAW WIDTH OPENINGS
A B C D E (Fixed) E (Swivel) F (Fixed) F (Swivel) G WEIGHT(kgs) Fixed WEIGHT(kgs) Swivel
100 100 40 340 90 120 152 176 16 13 17
150 150 50 490 110 150 248 289 20 35 47
200 200 58 670 130 180 300 332 20 63 84

Features

  • Fitted with thrust bearing for smooth movement and less fatigue.
  • Vise body is made from high strength graded cast iron for toughness and rigidity.
  • Fine acme thread lead screw.
  • Moving Jaw run in long Prismatic slides with provision for wear adjustment.
  • Jaws are made of special steel, which are hardened and ground.
  • Fixed jaw is provided with vertical and horizontal V grooves to hold round jobs perfectly.
  • Vise can be converted from swivel base to fixed base by removing the swivel base.
  • Quick alignment to machine table through longitudinal slot provided in both the swivel base and vise body.
  • Crank handle is made up of unbreakable steel and consists of a spring loaded ball mechanism to provide a positive grip during operations.
