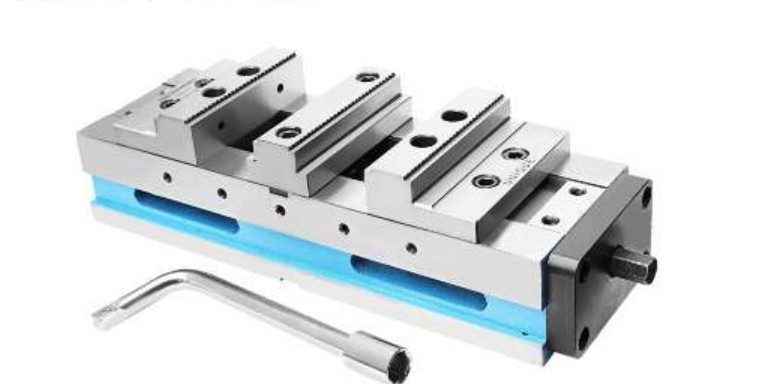

UNIQUE PRECISION SELF CENTERING HIGH GRIP MACHINE VISE

Download Catalog

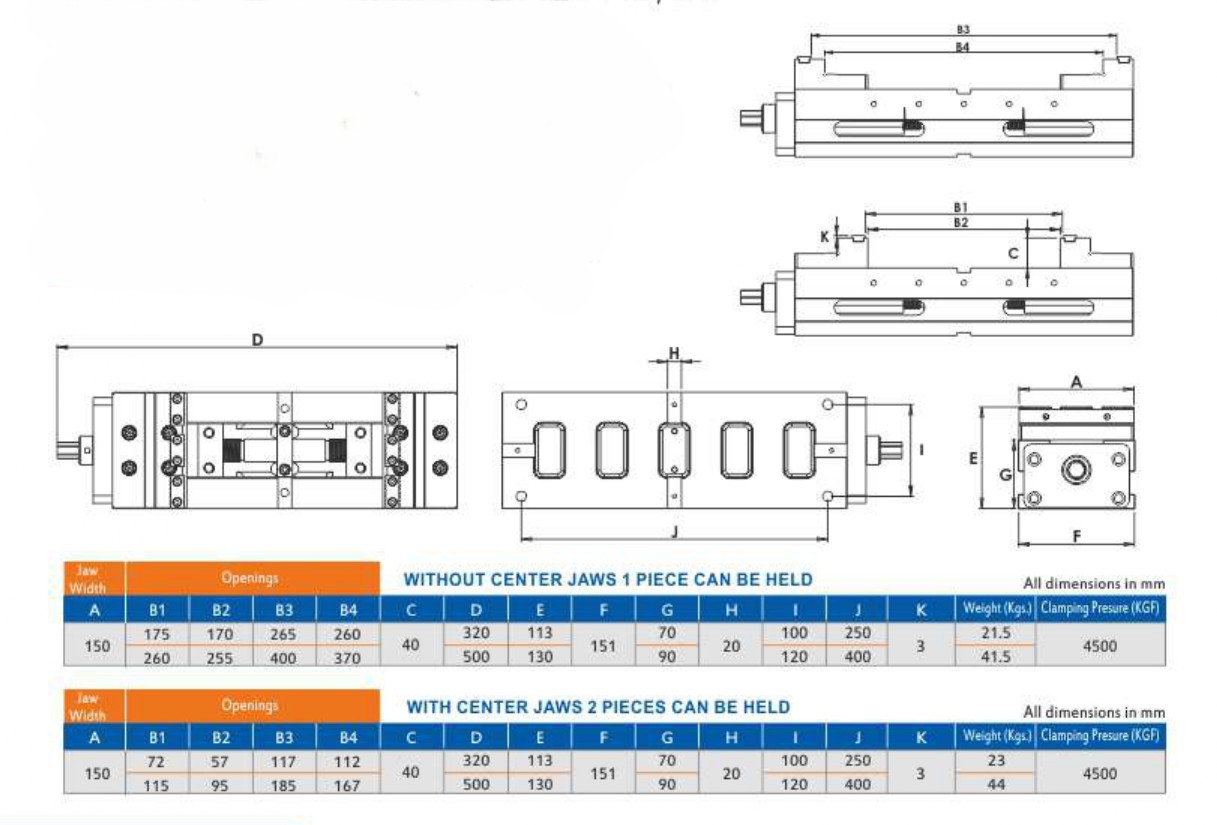

JAW WIDTH	OPENING				WITHOUT CENTER JAWS 1 PIECE CAN BE HELD
A	B1	B2	B3	B4	C	D	E	F	G	H	I	J	K	WIGHT (KGS)	CLAMPING PRESSURE (KGF)
150	175	170	265	260	40	320	113	151	70	20	100	250	3	21.5	4500
150	215	212	400	370	40	500	130	151	90	20	120	400	3	41.5	4500

JAW WIDTH	OPENING				WITHOUT CENTER JAWS 2 PIECE CAN BE HELD
A	B1	B2	B3	B4	C	D	E	F	G	H	I	J	K	WIGHT (KGS)	CLAMPING PRESSURE (KGF)
150	72	57	117	112	40	320	113	151	70	20	100	250	3	22	4500
150	115	95	185	137	40	500	130	151	90	20	120	400	3	44	4500

Features

Specially designed for Precision milling, Grinding and CNC Operations.
Compact design with large opening suitable for 4th and 5th axis rotary tables.
High quality alloy steel jaws, case hardened to HRC 60 + 2.
High quality FCD 60 vise body, with flame hardened guideways for better wear resistance.
Top and bottom vise faces are parallel well within + 0.02 mm / 100mm.
High accuracy in squareness, within + 0.02mm /100mm.

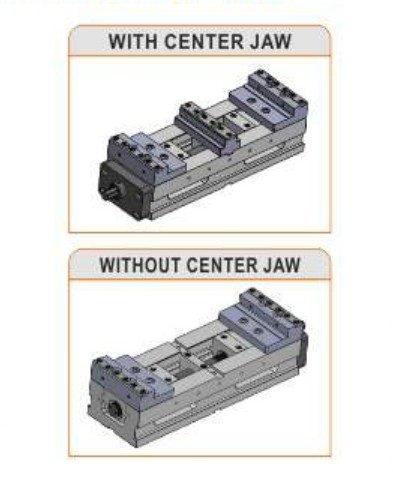

Vise can be customized for holding two work pieces with optional intermediate jaw.
Tenon and Tenon slots are provided for effortless truing of the machine vise to the machine table.
Jaws are reversible, so as to provide additional clamping range.
Maximum Clamping force of 4500 KGF could be achieved.
