UNIQUE PRECISON MACHINE VICE- U329

Code:

▪Precison Machine Vice
▪Swivel Base
▪High quality FCD 60 vise body

Click to Expand

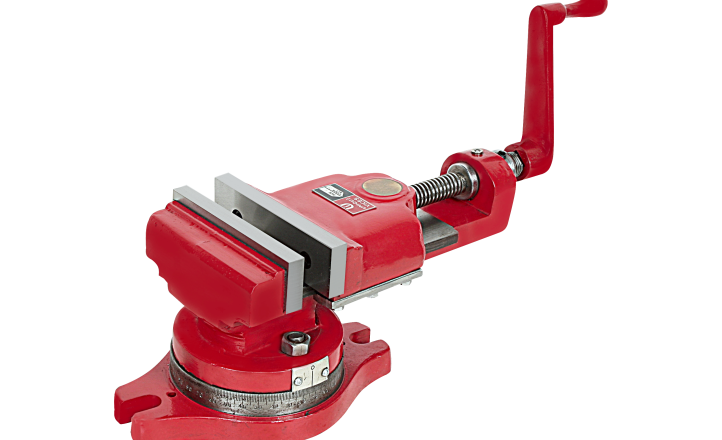

UNIQUE PRECISON MACHINE VICE- U329

Product Overview

The Unique Precision Machine Vice (Model U329) is a high-accuracy workholding solution engineered with a swivel base for versatile positioning. The unit is constructed with a high-quality FCD 60 vise body, designed to provide maximum rigidity while maintaining a low-profile height.

Key Features & Capabilities

High-Quality Construction: Manufactured with an FCD 60 vise body for enhanced durability and structural integrity.
Swivel Base: Integrated base allows for precise angular adjustment and positioning.
Precision Engineering: Designed specifically for high-accuracy machining applications.
Rigid Design: Engineered for low height to minimize vibration and ensure stability during operation.

Technical Specifications

Parameter	4 Inch Model	6 Inch Model
Width of jaws (mm)	100	150
Opening of jaws (mm)	65	115
Depth of jaws (mm)	30	40
Height overall (mm)	112	144
Width Overall (mm)	112	150
Length Overall (mm)	310	460
Weight (Approx) (kgs)	7	20
Tenon Slot (mm)	16	16
