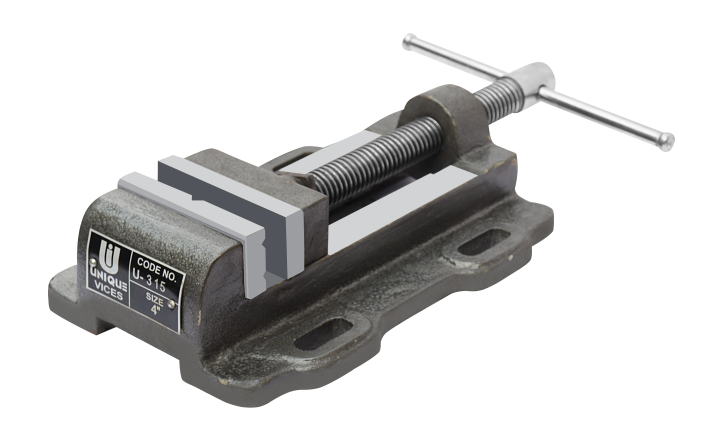

UNIQUE SUPER DRILL PRESS VICE – CODE U315

Code:

▪Clamping force right behind work.
▪No lifting of the sliding jaw.
▪Used for light milling & drill works, simple but sturdy.
▪Fitted with all over hardened ground high quality steel jaws.
▪Moving jaw is plain and other is provided with one vertical & two horizontal 90° V-grooves.

Click to Expand

UNIQUE SUPER DRILL PRESS VICE – CODE U315

Product Overview

The UNIQUE Super Drill Press Vice (Code No. U315) is a simple yet sturdy clamping solution engineered specifically for light milling and drilling operations. Designed to deliver clamping force directly behind the workpiece, this vice ensures high stability and precision during machining tasks.

Key Features & Capabilities

Direct Clamping Force: Engineered to apply clamping force right behind the work for maximum stability.
Anti-Lift Mechanism: Designed to prevent any lifting of the sliding jaw during clamping operations.
High-Quality Construction: Fitted with all-over hardened and ground high-quality steel jaws to ensure durability and long-term accuracy.
Versatile Jaw Configuration: Features a plain moving jaw, while the stationary jaw is equipped with one vertical and two horizontal 90° V-grooves for secure round stock clamping.
Robust Application: Ideal for light milling and drill works, offering a simple, dependable, and sturdy design.

Technical Specifications

Parameter	Size: 4"	Size: 6"	Size: 8"
Width of Jaws (mm)	100	150	200
Opening of Jaws (mm)	130	210	290
Depth of Jaws (mm)	45	55	60
Height Overall (mm)	75	108	125
Length Overall (mm)	350	460	572
Width Overall (mm)	200	250	310
Slot Size (mm)	13	13	13
Weight (Approx. in kg)	11.5	24	48
