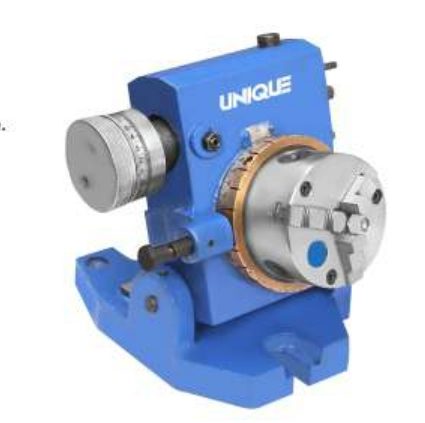

UNIQUE TILTING INDEXING DEVICE CODE – U1333

Code:

▪Offers the same features as U1335 Indexing & Milling Fixture.
▪The working surface can be rotated between 0 to 90 degree in the A axis.
▪Offers the combined features of U352 Divinding head & U354 Rotary Table at a more economical price

Click to Expand

UNIQUE TILTING INDEXING DEVICE CODE – U1333

Product Overview

The UNIQUE Tilting Indexing Device (Model U1333) is an industrial workholding and machining solution engineered by UNIQUE. It combines the functionality of the U352 Dividing Head and the U354 Rotary Table into a single, economical tool while matching the features of the U1335 Indexing & Milling Fixture.

Key Features & Capabilities

Offers the same features as the U1335 Indexing & Milling Fixture.
The working surface can be rotated between 0° to 90° in the A-axis.
Combines the features of the U352 Dividing Head and U354 Rotary Table at a more economical price point.

Technical Specifications

Size in mm	4	8
Diameter Chuck (in mm)	100	200
Length (in mm)	250	300
Width (in mm)	220	280
Height (in mm)	190	170
Swivel	360°	360°
Tilting	90°	90°
Slots Distance (in mm)	170	275
Weight (Approx) in kgs.	16	62
