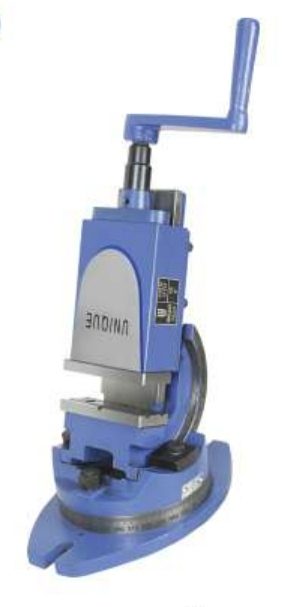

UNIQUE TILTING & SWIVELLING VISE – CODE U312

  • Fitted with Thrust Bearing for Smooth Movement.
  • Positive locking to withstand heavy loads.
  • Horizontal Swivel movement 360º.
  • Vertical swivel movement 90º.
  • Fine acme thread screw made out of special steel.
  • Quick alignment to machine tables using a longitudinal slot.
  • One vertical Two horizontal ‘V’ grooves are provided in hardened and ground jaws .
  • Crank Handle is made of unbreakable steel provided with a spring loaded mechanism.
  • Supplied with Stopper for Fast Production.

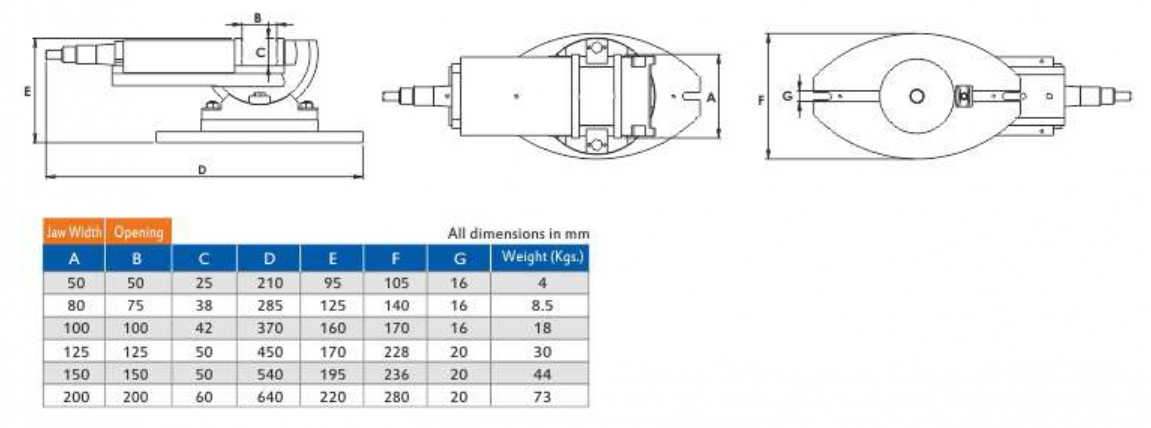

JAW WIDTH OPENINGS
A B C D E F G WEIGHT (kgs).
50 50 25 210 95 105 16 4
80 75 38 285 125 140 16 8.5
100 100 42 370 160 170 16 18
125 125 50 450 170 228 20 30
150 150 50 540 195 236 20 44
200 200 60 640 220 280 20 73

Features

  • Horizontal swivel movement 360 degree.
  • Vertical swivel movement of 90° in the A rotational axis.
  • Positive locking to withstand heavy loads.
  • Fitted with thrust bearing for smooth movement and less fatigue.
  • High Quality ACME Steel screw.
  • Vise body is made from high strength graded cast iron for toughness and rigidity.
  • Jaws are made of special steel, which are hardened and precision ground.
  • Jaws are provided with one vertical and two horizontal V’ grooves to hold round jobs rigidly.
  • Quick alignment to machine table through longitudinal slot provided in the swivel base.
  • Crank handle is made of unbreakable steel and consists of a spring loaded ball mechanism to provide a positive grip during operations.
    Also available in High quality FCD 60 vise body
