FORCE GAUGE ATTACHMENTS

ATTACHMENTS FOR COMPRESSION TEST Fixtures for varieties of compression test such as durability tests, bending tests, sticking tests. PG-2／3／4／5 Compression Test for Small Spots Ideal for small sample compressions and intrusion tests. Models PG-2 PG-3 PG-4 PG-5 Capacity(N) 100 100 200 200 External diameter(mm) Approx.φ2 Approx.φ3 Approx.φ4 Approx.φ5 Weight(g) Approx.2 Approx.3 Approx.4 Approx.5 Mounting screw

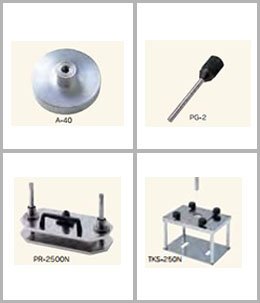

ATTACHMENTS FOR COMPRESSION TEST

Fixtures for varieties of compression test such as durability tests, bending tests, sticking tests.

PG-2／3／4／5

Compression Test for Small Spots

Ideal for small sample compressions and intrusion tests.

Models	PG-2	PG-3	PG-4	PG-5
Capacity(N)	100	100	200	200
External diameter(mm)	Approx.φ2	Approx.φ3	Approx.φ4	Approx.φ5
Weight(g)	Approx.2	Approx.3	Approx.4	Approx.5
Mounting screw	M6

TKS-20N／250N

Sticking Test Fixture

Ideal for sticking test for thin measuring samples such as film.

Models	TKS-20N	TKS-250N
Capacity(N)	20	250
Pin diameter(mm)	Approx.φ1	Approx.φ1
Pin weight(g)	Approx.22.2(Pin+Pin vice)	Approx.16
Mounting screw	M6

GA-10N／5000N

Bending Test Fixture

Ideal for 3 points bending test for metals and glasses.

Models	GA-10N	GA-5000N
Capacity(N)	500	5000
Weight(g)	Force gauge side：Approx.100	Force gauge side：Approx.120
Mounting screw	M6	M10

PR-500N／2500N

Durability Test Fixture

Ideal for durability tests for retort pouch, heat sealed packages, box and so on.

Models	PR-500N	PR-2500N
Capacity(N)	500	2500
Measurable size(mm	W194XD120XH105	W200XD140XH105
Weight(g)	Force gauge side：Approx.900	Force gauge side：Approx.3100
Mounting screw	M6	M10

A-40／60, S-40／60

Compression Test Fixture

Ideal for crashing test.Type A made of aluminum and Type S made of steel.Especially, Type A is suitable for low capacity force gauges

Models	A-40	A-60	S-40	S-60
Capacity(N)	200	200	500	500
External diameter(mm)	φ40	φ60	φ40	φ60
Weight(g)	Approx.38	Approx.84	Approx.110	Approx.238
Mounting screw	M6

UR-8S／8M

Compression Test Fixture

Hemisphere compression test fixture made of urethane. It helps touching test with the hardness and the elasticity.

Models	UR-8S	UR-8M
Capacity(N)	50	50
Weight(g)	Approx.5.4	Approx.5.2
Hardness	ShoreA50	ShoreA40
Hardness	Hardness like eraser	Hardness like rubber ball for base ball
Mounting screw	M6

PC series

High Capacity Compression Test Fixture[Disc type]

Ideal for high capacity compression/ breaking test up to 5000N.
The free joint design is closer fitting the samples.

Models	PC-5040	PC-5060	PC-5100
Capacity(N)	5000	5000	5000
External diameter(mm)	φ40	φ60	φ100
Weight(g)	Approx.160	Approx.330	Approx.820
Mounting screw	M10

SQ series

High Capacity Compression Test Fixture[Rectangle type]

Ideal for high capacity compression/ breaking test up to 5000N.
The free joint design is closer fitting the samples

Models	SQ-5030	SQ-5075	SQ-5150
Capacity(N)	5000
寸法(mm)	30X20	75X50	150X100
Weight(g)	Approx.65	Approx.500	Approx.1560
Mounting screw	M10

SP series

High Capacity Compression Test Fixture[Spherical type]

Ideal for high capacity compression/ breaking test up to 5000N.
sp_series

Models	SP-5010	SP-5020	SP-5030
Capacity(N)	5000
External diameter(mm)	φ10	φ20	φ30
Weight(g)	Approx.26	Approx.55	Approx.135
Mounting screw	M10

ATTACHMENTS FOR TENSILE TEST

The grips are used for varieties of tensile test such as tearing tests, breaking tension test.

FC series

Film Grip

Ideal grips for gripping thin samples like film. The single side of grip of FC-21U/４１U/21UQ is attached urethane. The grips can tightly hold the samples without the breakings. FC-21UQ is lever type. It makes easy to grip samples.

Models	FC-21	FC-20	FC-40	FC-21U	FC-41U	FC-21UQ
Capacity(N)	250	500	500	250	250	250
Features	Light type	up to 500N	Wide type up to 500N	One side urethane	Wide grip one side urethane	One side urethane with a lever
Aperture width(mm)	Approx.20	Approx.20	Approx.40	Approx.20	Approx.40	Approx.20
Aperture opening width(mm)	Max.2	Max.2	Max.2	Max.2	Max.2	Max.0.2
Weight(g)	Approx.25	Approx.73	Approx.125	Approx.40	Approx.70	Approx.50
Mounting screw	M6

KC series

Wedge Grip

Ideal for gripping wire, cable and so on. The gripping is as easy as promoting measuring efficiency.The holding mechanism is automatically becoming strong when pulling the sample. (It is not suitable for tempered samples.)

Models	KC-100	KC-1001	KC-5000
Capacity(N)	500	1000	5000
Aperture opening width(mm)	Max.10	Max.2	Max.5
Weight(g)	Approx.330	Approx.95	Approx.565
Mounting screw	M6	M6	M10

GC-30,WC-2000

Wire Wrapping Grip

Wind and hold line samples such as string and wire. The applied force on the sample is spread due to the winding
hold. It helps to prevent sample from breaking.

Models	GC-30	WC-2000
Capacity(N)	500	2000
Diameter of bolt(mm)	M10	M16
Measurable line diameter(mm)	Max.φ1	Max.φ2
Weight(g)	Approx.136	Approx.900
Mounting screw	M6	M10

GP-15／30

Knurled Cam Grip

Ideal for soft samples like resin becoming thin when it stretches. It reduces the sample breaking with the knurled cam style.

Models	GP-15	GP-30
Capacity(N)	250	1000
Aperture opening width(mm)	Max.4.5	Max.10
Weight(g)	Approx.70	―
Mounting screw	M6	―

CW-500N

Wire Clamp Grip

The wedge type grip fixture. Easily but tightly hold wire/cable.

Models	CW-500N
Capacity(N)	500
Aperture opening width(mm	Max.5
Weight(g)	Approx.220
Mounting screw	M6

PGC series

Pantograph Grip

It is easy to hold sample like a clothespin. The holding strength becomes strong when pulling the sample. It tightly grips changeable shape samples such as rubber or resin.

Models	PGC-0505	PGC-0510	PGC-2530
Capacity(N)	500	500	2500
Aperture opening width(mm	Max.20	Max.15	Max.15
Weight(g	Approx.170	Approx.110	Approx.750
Mounting screw	―	―	M10

DF-60

Hook for Corrugated Cardboard Adhesion Test

Special measuring attachment for corrugated card board opening strength.

Models	DF-60
Capacity(N)	250
Width(mm)	Approx.60
Weight(g)	Approx.145
Mounting screw	M6

BC-15/PGC-BC

Grip and Fixture for Tensile Strength Test of Sewed Buttons

Ideal for measurement of cloth button sewed strength. It is possible to grip a button up to 15 mm diameter. The measuring efficiency is improved with the simple sample mounting.

PGC-BC

Models	PGC-BC
Capacity(N)	300
Aperture opening width(mm	Max.20
Weight(g)	Approx.125

BC-15

Models	BC-15
Capacity(N)	300
Measureable diameter(mm	Max.φ15
Measurable height(mm)	Max.3.5

SC-3／8

Small Grip

Ideal for gripping fine samples or measuring at narrow spaces.

Models	SC-3	SC-8
Capacity(N)	100	150
Aperture opening width(mm	Max.1	Max.1
Weight(g)	Approx.20	Approx.21
Mounting screw	M6

FP-50／51

Fine Point Chuck

Ideal for fine line samples or measuring at narrow spaces

Models	FP-50	FP-51
Capacity(N)	100	50
Aperture opening width(mm)	Max.0.5	Max.0.5
Weight(g)	Approx.19	Approx.8
Mounting screw	M6

GR-30／2000

Cam Grip

Ideal for tension measurement for thin, small and rectangle shape samples. Easy setting steps, put sample and pull the lever. It promotes measuring efficiency.

Models	GR-30	GR-2000
Capacity(N)	500	2000
Aperture opening width(mm)	Max.2	Max.4
Measurable width(mm)	Max.30	Max.50
Weight(g)	Approx.180	Approx.870
Mounting screw	M6	M10

GC-60／100

Tape Grip

Ideal for elastic or changeable shape samples such as rubber, film and tape. The holding strength is hardy by winding sample around the grip. It holds the sample properly.

Models	GC-60	GC-100
Measurable width(N)	500	500
Measurable width(mm)	Max.30	Max.50
Aperture opening width(mm	Max.2
Weight(g)	Approx.158	Approx.300
Mounting screw	M6

ATTACHMENTS FOR COMPRESSION AND TENSION TEST

Convertible type attachments for compression and tension test

CP-150N

Pin Grip

Ideal for gripping thin wire shape sample (cylindrical shape sample). Suitable for compression and tension test at a narrow space or low capacity measurements.

Models	CP-150N
Capacity(N)	150
Aperture opening width(mm	Approx.φ0～3.2
Weight(g)	Approx.22
Mounting screw	M6

GC-5／15

Jacob’s Chuck

It is suitable for gripping a round stick shape sample. The chuck shape prevents the sample from slipping.

Models	GC-5	GC-15
Capacity(N)	500	1000
Aperture opening width(mm)	Approx.φ0.5～6.5	Approx.φ2.0～13
Weight(g)	Approx.235	Approx.500
Mounting screw	M6

GC-1100／1200／5000

Flat Chuck

The large opening width chuck fixtures. They can grip varieties of thickness. Thin things and thick things are able to be gripped.

Models	GC-1100	GC-1200	GC-5000
Capacity(N)	1000	1000	5000
Aperture opening width(mm)	Max.10	Max.20	Max.30
Weight(g)	Approx.160	Approx.170	Approx.1400
Mounting screw	M6	M6	M10

ATTACHMENTS FOR WIRE HARNESS TEST

It can be used as a simple harness tester to combine a force gauge, a test stand and attachments for wire harnesses.
The combinations are available for various size harnesses.

Included Attachments in A Manual Wire Clamp Pull Tester[LH-500N(P42)]

～500N

Models	CH-500N	CW-500N
Capacity(N)	500	500
Aperture opening width(mm)	Max.6	Max.5
Weight(g)	Approx.210	Approx.220
Mounting screw	M6	M6

Attachments for Vertical Test Stands

～1000N

Models	FW-12
Capacity(N)	1000
Measureable diameter(mm)	φ1～8
Weight(g)	Approx.380
Mounting screw	M6

Models	GP-30
Capacity(N)	1000
Aperture opening width(mm)	Max.10
Weight(g)	Approx.880

Attachments for High Capacity Measurements

～5000N

Models	CH-5000N
Capacity(N)	5000N
Measureable diameter(mm)	φ4～12(Internal diameter of the terminal hole)
Weight(g)	Approx.315
Mounting screw	M10

Models	CW-5000N
Capacity(N)	5000
Measurable diameter(mm	Max.φ30(Cable diameter)

ATTACHMENTS FOR PEELING TEST

Peeling strength tests (adhesive strength tests) for sticky tapes and coating surfaces.

P45-50N

45 Degree Peel Test Fixture

Ideal for peeling test of cup container film covers. It keeps the peeling degree at 45 degree which is almost same as opening a cup container.

Models	P45-50N
Capacity(N)	50
Measurable size(mm)	Height：Approx.10～100　Diameter：Approx.20～140
Chuck opening width(mm)	Max.2

P90-200N/200N-EZ

90 Degree Peel Test Fixture

Ideal for 90 degree peeling test for adhesive tape and so on. P90-200N keeps the peeling degree at 90 degree. The moderated price model is P90-200N-EZ.

force gauge attachment-p90-200n_200n-ez_01

Models	P90-200N	P90-200N-EZ
Measurable force(N)	～200	0.4～200
Measurable size(mm)	Length：Max.155　Width：Max.80

P180-200N

180 Degree Peel Test Fixture

Ideal for 180 degree peeling test for adhesive tape and so on.

Models	P180-200N
Measurable force(N)	0.5～200
Measurable size(mm)	Length：Max.150　Width：Max.40

APR-97

Rubber Roller for Peel Test

It helps more accurate peeling tesｔ by applying stable pressure to stick samples.

Models	APR-97
The roller weight(g)	Approx.2000
The sample contacting part material	Rubber(Hardness A80)

TH-1000N／5000N

Coating Surface Peeling Test Attachment

It is ideal for peeling test of coating surfaces. It is including 5 peeling heads.

force gauge attachment-th-1000n_5000n_01

Models		TH-1000N	TH-5000N
Capacity(N)		1000	5000
Upper fixture（Force gauge side	Adhesive area shape	Diameter20mm	Diameter20mm
	Weight（g）	Approx.90	Approx.195
	Mounting screw	M6	M10
Lower fixture	The center hole diameter（mm	Diameter30	Diameter30

OTHER ATTACHMENTS

GT-30／2000N

Vice Grip

It is possible to fix a sample by mounting on a vertical type test stand.

Model	GT-30	GT-2000N
Capacity(N)	1000	2000
Aperture opening width(mm)	Max.38	Max.64
Mounting	to Test stand table

GTW-50R／50L

Self-centering Vice Grip

Self-centering vice when gripping a sample. High operability knob type and strong holding lever type.

Models	GTW-50R	GTW-50L
type	Knob type	Lever type
Capacity(N)	500	1000
Aperture opening width(mm	Max.68
Mounting	to Test stand table

XY-500N

XY Table

It makes a sample put at the center with precise adjustment for X direction and Y direction.

force gauge attachment-xy-500n

Models	XY-500N
Capacity(N)	Tension：500　Compression：1000
X-Y movement amount	±30
Mounting	to Test stand table

TS-5000N

T-Slot Table

The attachment for holding fixture. It can easily be attached and removed fixtures.

force gauge attachment-ts-5000n

Models	TS-5000N
Capacity(N)	5000
Diameter of T-nut hole	M8
The space between T-nuts	Max.125
Movement amount(mm)	X:±64　Y:±15
Mounting	to Test stand table

FOH-1

Optional Handle for Force Gauge

It can mount on a force gauge with screws. It enables to apply stable force by mounting on a force gauge.

force gauge attachment-foh-1

Models	FOH-1
Compatible model	1000N or less range of ZTA/ZTS/DS2/PSS/PS/PSM/FS/FB series
Weight(g)	Approx.500

JF／EJ series

Attachment Adapter

The mounting adapter for grip type attachment for tension test. They helps smooth sample fixation and precise adjustments of gripping positions and angle.

force gauge attachment-jf_ej-series

Models	JF6-50N	EJ6-1000N	EJ10-5000N
Capacity(N)	50	1000	5000
Mounting screw for a force gauge	―	M6	M10
Mounting screw for a chuck fixture	M6	M6	M10
Weight(g)	Approx.8	Approx.29	Approx.140

CA series

Conversion Adapter

The screw diameter of test shafts mounting attachments is different by force gauges. The conversion adopter enables to mount various attachments.

force gauge attachment-ca_series

Models	Screw diameter	Capacity	Purpose
CA-F6T4	M6(Female Screw)→M4	100Ｎ	When mounting a M4 screw attachment of FRT to a M6 screw thread of a force gauge.
CA-F6T10	M6(Female Screw)→M10	500Ｎ	When mounting a M10 screw attachment to a M6 screw thread of a force gauge.
CA-F10T6	M10(Female Screw)→M6	500Ｎ	When mounting a M6 screw attachment to a M10 screw thread of a force gauge.
CA-F4T6	M4(Female Screw)→M6	100Ｎ	When mounting a M6 screw attachment to FRT series.
CA-F5T4	M5(Female Screw)→M4	100Ｎ	When mounting a M4 screw attachment to a M5 screw thread of Load cell LMU series
CA-F5T6	M5(Female Screw)→M6	500Ｎ	When mounting a M6 screw attachment of FRT series to a M5 screw thread of a load cell LMU series
CA-8T4	M8→M4	100Ｎ	When mounting a M4 screw attachment of FRT series to M8 screw thread of a load cell LU series. ※It does not mount to a T nut.
CA-8T6	M8→M6	500Ｎ	When mounting a T nut / M8 screw thread of load cell LU series to M6 screw attachment
CA-8T10	M8→M10	2000Ｎ	When mounting a T nut / M8 screw thread of load cell LU series to M10 attachment.
