CERAMIC EDGE FINDER CODE – 6568

Name: CERAMIC EDGE FINDER CODE – 6568
Brand: INSIZE
SKU: 6568

Code:

Ceramic contact point, non magnetic Code Shank(A) Contact point(B) Accuracy 6568-1 Ø10mm Ø10mm 8µm Check the PDF

DOWNLOAD CATALOG

f in

Click to Expand

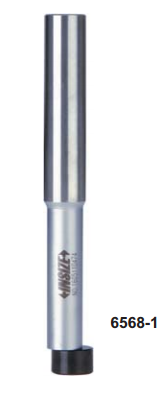

CERAMIC EDGE FINDER CODE – 6568

Product Overview

The INSIZE Ceramic Edge Finder (Model 6568-1) is a precision inspection tool designed for accurate edge location in machining and metrology applications. This model features a non-magnetic ceramic contact point, ensuring reliability in environments where magnetic interference must be avoided.

Key Features & Capabilities

Non-Magnetic Construction: Equipped with a ceramic contact point to prevent magnetic interference.
Precision Engineering: Designed for high-accuracy edge detection with a specified tolerance of 8µm.
Standardized Dimensions: Features a 10mm shank diameter and a 10mm contact point diameter.

Technical Specifications

Parameter	Specification
Model Code	6568-1
Shank Diameter (A)	Ø10mm
Contact Point Diameter (B)	Ø10mm
Accuracy	8µm
Contact Point Material	Ceramic
Magnetic Properties	Non-magnetic
