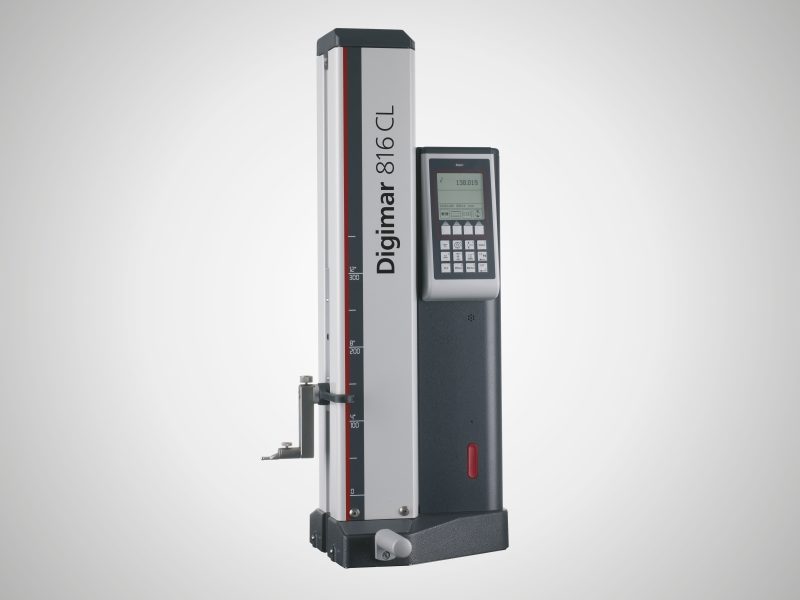

DIGIMAR 816 CL HEIGHT MEASURING INSTRUMENT

DIGIMAR 816 CL HEIGHT MEASURING INSTRUMENT

Excellent accuracy and reliability due to the optical incremental measurement system with the double reader head A dynamic probing system enabling high repeatability Air bearings system for light and smooth movement Precise measuring head on stainless steel guideways Motorized measuring carriage simplifies measurement runs Temperature compensation with an integrated temperature sensor Probe constant remains after

Excellent accuracy and reliability due to the optical incremental measurement system with the double reader head
A dynamic probing system enabling high repeatability
Air bearings system for light and smooth movement
Precise measuring head on stainless steel guideways
Motorized measuring carriage simplifies measurement runs
Temperature compensation with an integrated temperature sensor
Probe constant remains after the instrument is switched off
Integrated rechargeable battery with a long operating time span for power source independent measurement
Easy to read background lit graphic LCD-Display
Large and clearly defined function keys
Operator guidance with self-explanatory icons/pictograms
Possible to set additional zero points on a workpiece
Memory can store up to 99 measured values
MarConnect Data output, select either: USB, OPTO RS232C

Height measuring instrument

Technical Data

Order no.	Measuring range mm	Measuring range inches	Resolution	Resolution	Error limit	Repeatability bores	Repeatability plane	Perpendicularity error in µm	Measuring force (N)	Product weight	Standard	Data interface
4429030	0 – 350	0 – 14″	0.01 mm / 0.001 mm	0 inch / 0 inch	(2.8+L/300) L in mm	3 µm	2 µm	15 µm	1.0 +/- 0.2 N	25 kg	Factory standard	Opto RS232C / USB / Wireless
4429031	0 – 600	0 – 24″	0.01 mm / 0.001 mm	0 inch / 0 inch	(2.8+L/300) L in mm	3 µm	2 µm	20 µm	1.0 +/- 0.2 N	30 kg	Factory standard	Opto RS232C / USB / Wireless
