DIGIMAR 817 CLM HEIGHT MEASURING INSTRUMENT

Name: DIGIMAR 817 CLM HEIGHT MEASURING INSTRUMENT
Brand: Mahr
SKU: 4429010

Code:

Excellent accuracy and reliability due to the optical incremental measurement system with the double reader head Dynamic probing system enabling high repeatability Air bearings system for light and smooth movement Precise measuring head on stainless steel guideways Motorized measuring carriage simplifies measurement runs Probe constant remains after the instrument is switched off Integrated rechargeable battery

f in

Click to Expand

DIGIMAR 817 CLM HEIGHT MEASURING INSTRUMENT

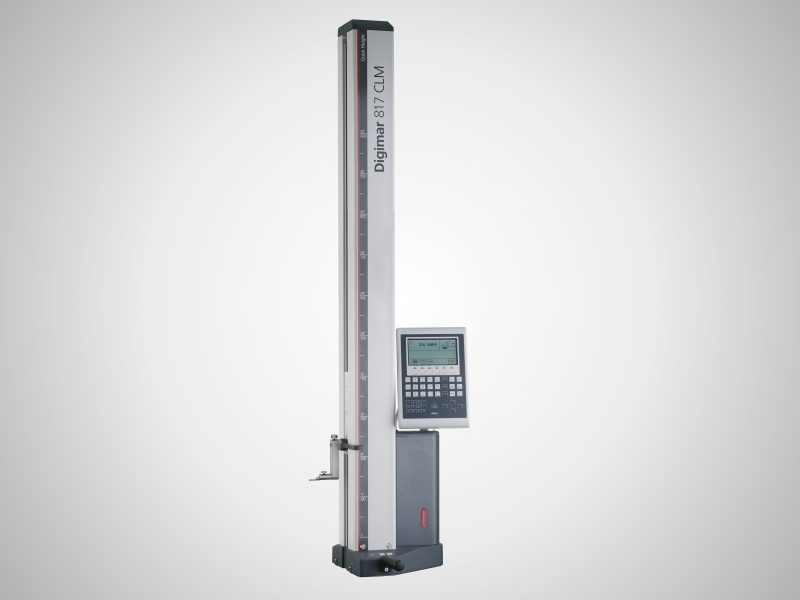

The Mahr Digimar 817 CLM is a high-precision height measuring instrument designed for reliable metrology applications. It features an optical incremental measurement system with a double reader head and a motorized measuring carriage to simplify measurement runs. The unit is engineered for smooth operation via an integrated air bearing system and utilizes a precise measuring head mounted on stainless steel guideways.

Key Features & Capabilities

High Accuracy: Optical incremental measurement system with double reader head ensures excellent accuracy and reliability.
Dynamic Probing: Enables high repeatability for consistent measurement results.
Motorized Operation: Motorized measuring carriage simplifies measurement runs.
Smooth Movement: Integrated air bearing system provides light and smooth movement.
Data Management: Probe constant is retained after the instrument is switched off.
Power Supply: Equipped with an integrated rechargeable battery for power source-independent measurement.
Temperature Compensation: Features an integrated temperature sensor.
User Interface: Large, clearly defined function keys and an easy-to-read, background-lit graphic LCD display.
Operator Guidance: Includes self-explanatory icons/pictograms and menu support in multiple languages.
Connectivity: Opto RS232-interface for connecting additional measurement instruments.
Advanced Functionality: Supports setting additional zero points on a work piece, automatic stand-by mode, and a selectable auto-off function that preserves measured values.
Future-Proofing: Software update potential ensures long-term utility.

Technical Specifications

Order No.	Measuring Range (mm)	Measuring Range (inches)	Resolution (mm)	Resolution (inch)	Error Limit	Repeatability (Bores)	Repeatability (Plane)	Perpendicular Error (µm)
4429010	0 – 350	0 – 14"	0.01 / 0.005 / 0.001 / 0.001 / 0	0.001 / 0.001 / 0 / 0 / 0	(1.8+L/600) L in mm	1 µm	0.5 µm	5 µm
4429011	0 – 600	0 – 24"	0.01 / 0.005 / 0.001 / 0.001 / 0	0.001 / 0.001 / 0 / 0 / 0	(1.8+L/600) L in mm	1 µm	0.5 µm	6 µm
4429012	0 – 1000	0 – 40"	0.01 / 0.005 / 0.001 / 0.001 / 0	0.001 / 0.001 / 0 / 0 / 0	(1.8+L/600) L in mm	1 µm	0.5 µm	10 µm
