The INSIZE Digital Height Gages with Driving Wheel (Code 1156) are precision measuring instruments constructed from durable stainless steel and equipped with a carbide-tipped scriber. Designed for accurate vertical measurements in metrology and machining applications, these non-waterproof height gages feature a driving wheel mechanism for smooth positioning and a digital display unit with a resolution of 0.01mm/0.0005".
Available in three models covering ranges up to 1000mm (40"), each unit includes a CR2032 battery, a dust cover, a dial test indicator holder, and data output capability for integration into quality control data systems.
- Construction & Build: Made of robust stainless steel with a carbide-tipped scriber for enhanced durability and wear resistance.
- Driving Wheel Mechanism: Integrated driving wheel allows smooth manual positioning along the vertical beam.
- Digital Display & Control:
- Resolution: 0.01mm / 0.0005"
- Functional Buttons: on/off, zero, mm/inch, preset +, preset -, and hold.
- Power Functions: Automatic power off; moving the digital unit automatically turns power back on.
- Data & Connectivity: Built-in data output function.

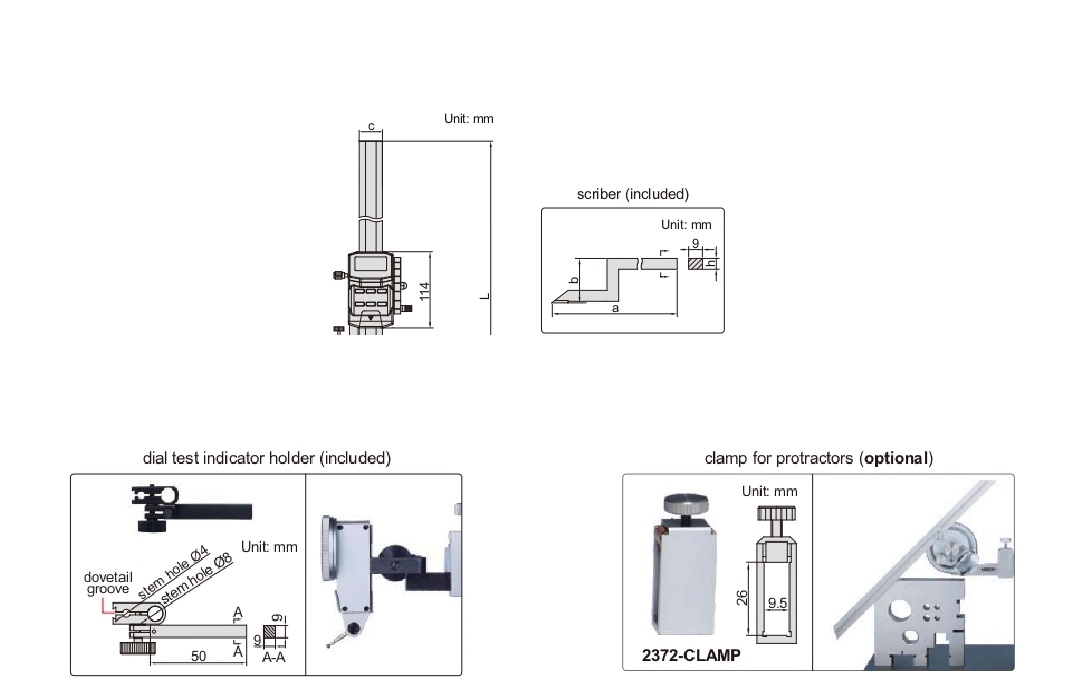

- Standard Inclusions: Supplied with a dust cover, dial test indicator holder, CR2032 battery, and manufacturer inspection certificate (for marked codes).
- Optional Accessories: Data output cables (codes 7315-22, 7302-22), dial test indicator holder (code 6293-6), and clamp for protractors (code 2372-CLAMP).
\Supplied with manufacturer inspection certificate.*
