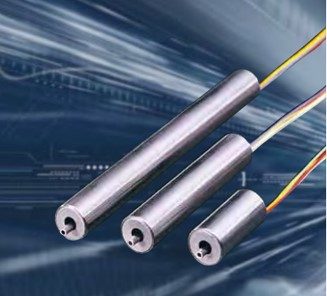

DISPLACEMENT GAUGING PROBES – OP SERIES

Name: DISPLACEMENT GAUGING PROBES – OP SERIES
Brand: Versa Controls

Displacement Gauging Probes – Optimum Series Linearity error better than 0.25% FSO Small body diameter 9.52 mm IP65 sealing Excellent measurement range to body length ratio Large radial bore clearance Rugged construction LVDT output The Optimum series of LVDT sensors is an ideal choice for process control and research applications. The free core variants are

f in

Click to Expand

DISPLACEMENT GAUGING PROBES – OP SERIES

Product Overview

The Optimum series of LVDT sensors (Displacement Gauging Probes) manufactured by Versa Controls is designed for process control and research applications. The free core variants are engineered for precise linear positioning and measurement of moving parts within a restricted space. The Optimum series is also available as a guided option.

Key Features & Capabilities

High Linearity: Linearity error better than 0.25% FSO
Compact Footprint: Small body diameter of 9.52 mm
Environmental Protection: IP65 sealing for reliable operation in industrial environments
Optimized Geometry: Excellent measurement range to body length ratio and large radial bore clearance
Durability: Rugged construction designed for industrial and research reliability
Signal Output: LVDT output

Technical Specifications

Technical Parameter	Specification
Brand	Versa Controls
Output Type	LVDT output
Body Diameter	9.52 mm
Linearity Error	Better than 0.25% FSO
Ingress Protection	IP65 sealing
Variants	Free core (also available as a guided option)
