INSIZE MOBILE PHONE VIDEOSCOPE (CODE ISV-P6)

Name: INSIZE MOBILE PHONE VIDEOSCOPE (CODE ISV-P6)
Brand: INSIZE
SKU: ISV-P6

Code:

For android and ios mobile phone

DOWNLOAD CATALOG

f in

Click to Expand

INSIZE MOBILE PHONE VIDEOSCOPE (CODE ISV-P6)

Product Overview

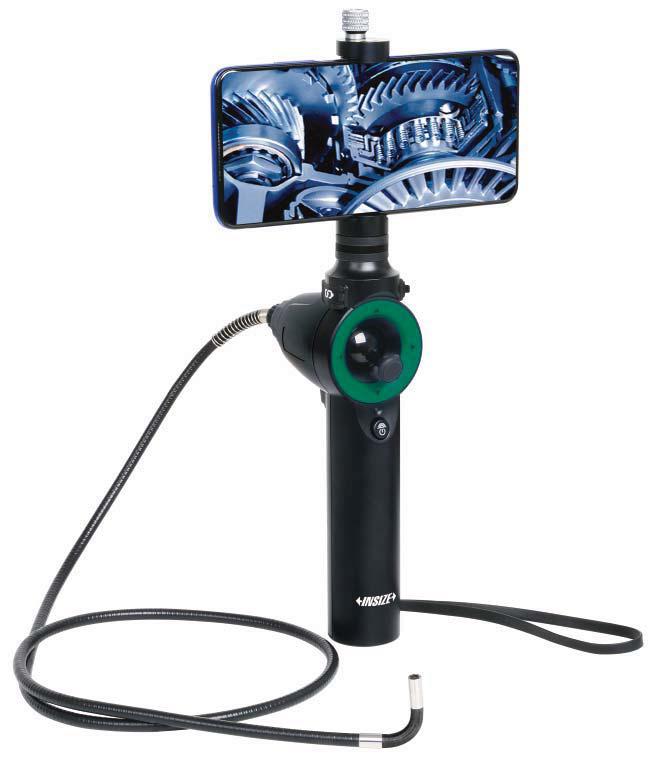

The INSIZE ISV-P6 is a mobile phone-compatible videoscope designed for inspection tasks. It features a manual joystick for multi-directional lens bending and is compatible with both Android and iOS mobile operating systems.

Key Features & Capabilities

Multi-Directional Articulation: Manual joystick control allows for lens bending in any direction, with a bending range of 0–180°.
Mobile Integration: Designed for use with Android and iOS mobile phones; includes a clamping bracket with a range of 56–95mm.
Adjustable Illumination: Equipped with an integrated LED light source featuring three levels of control.
Durable Construction: Features a wear-resistant cable.
Portable Power: Powered by a rechargeable battery providing approximately 2 hours of operation.

Technical Specifications

Parameter	Specification
Diameter of lens (ØD)	6±0.2 mm
Length of cable	1m
Resolution	960×720, 1280×720 (switchable)
Depth of field	20mm–∞
Angle of view (θ)	100°
Bending range (α)	0–180°
Illumination	LED with 3 levels control
Cable type	Wear resistant
Interface	USB, Type-C
Mobile phone system	Android, iOS
Power supply	Rechargeable battery (approx. 2 hours working)
Dimension (L×W×H)	195×57×105 mm
Weight	450g
