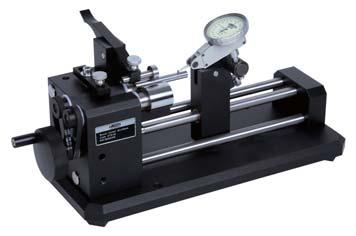

The INSIZE Quick Positioning Concentricity Gage (Model: 4734-25) is a precision inspection tool designed for rapid positioning and mass measurement of cylindrical workpieces.
Key Features & Capabilities
Quick positioning design optimized for mass measurement applications
Quick turning mechanism for efficient inspection
Optional accessory availability for dial test indicators
Stem hole dimensions: Ø4/Ø8 mm
Technical Specifications
Technical Parameter
Specification
Code
4734-25
Diameter Range
Ø3-25 mm
Workpiece Length
15-100 mm
Accuracy

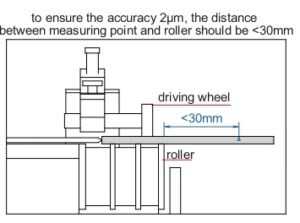

2 µm (with distance between measuring point and roller maintained at <30 mm)
