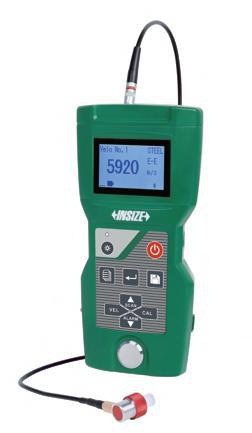

The INSIZE ISU-800D is an advanced ultrasonic thickness gage designed for high-precision material testing. It features real-time temperature compensation to eliminate measurement errors caused by thermal variations and supports both single and dual element transducers. The device allows for thickness measurement of substrates through coatings and offers multiple measurement methods, including single point, scanning, and deviation.
- Measurement Modes:
- Standard Mode: Dual element (P-E mode), Single element (I-E mode)
- Penetrate Coating Mode: Dual element (I-E mode), Single element (E-E mode or auto mode)
- Measurement Methods: Single point, scanning, and deviation.
- Calibration: Supports single point and 2-point calibration.
- Data Management: Internal memory for 1000 measurement values; data transfer via Bluetooth or Mini-USB.
- Operational Safety: Includes an out-of-tolerance alarm with user-defined upper and lower limits and a keyboard lock function to prevent accidental setting changes.
- Temperature Compensation: Real-time compensation for improved accuracy.
\H is the measured thickness in mm. (Take the larger value for accuracy calculations where applicable).*
\\Delay blockers are suitable for transducer ISU-S15-P06.
