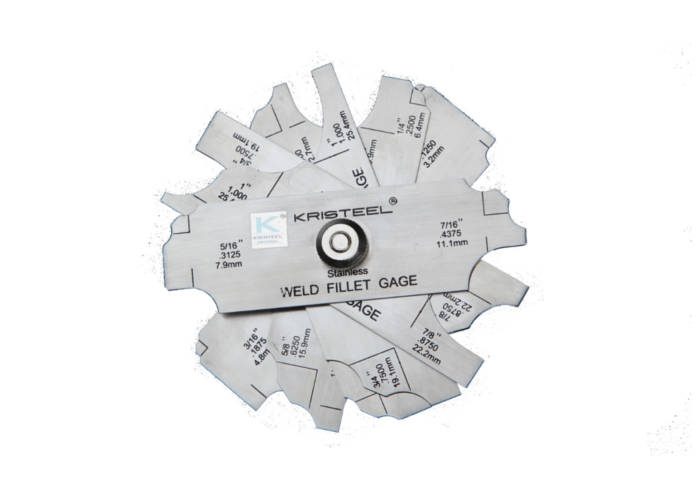

The Kristeel Leaf Type Weld Fillet Gauge (Model: LTWFG) is a rugged, professional-grade inspection tool fabricated in stainless steel, designed for the fast and accurate measurement of eleven (11) fillet weld sizes and their metric equivalents. It is suitable for determining whether weld sizes are concave or convex. Each gauge blade is constructed from cold-rolled stainless steel to resist rust and bending, and is deburred to eliminate rough edges.
- Inspection Function: Used for the inspection of concave or convex fillet welds.
- Weld Size Range: Measures eleven (11) fillet weld sizes: 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 5/8", 3/4", 7/18" (noted as 7/18" / 7/8" in documentation), and 1", along with their metric equivalents.
- Blade Construction: Each blade is made of 1.25" x 4" cold-rolled stainless steel to resist rust and bending, with deburred edges.
- Engraved Markings: All sizes and numerals are permanently engraved into the surface for easier reading.
- Portability: The set of eleven blades comes in a handy pocket case with a user manual attached.
