KRISTEEL WELDING GAUGE V WAC (VWWG)

▪To check undercut depth near welding area, range from 0-6 mm with least count of 0.5 mm.
▪To check but weld crown or reinforcement height, range from 0-6 mm with least count of 0.5 mm.
▪Porosity size comparison, range for dia. 1.5 & 3.0 mm.
▪Amount of porosity per 25 mm, least count = 1.0 mm.

Click to Expand

KRISTEEL WELDING GAUGE V WAC (VWWG)

Product Overview

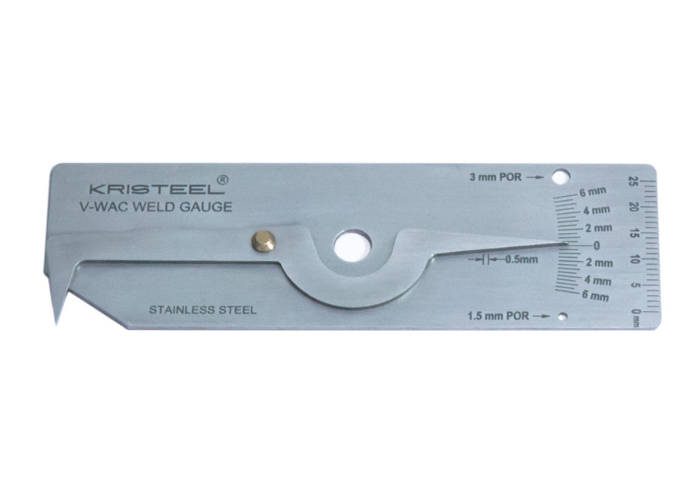

The Kristeel V WAC Weld Gauge is fabricated in stainless steel with a polished finish, designed for precision welding inspection and maintenance. It enables the user to perform four essential measurements with a single gauge: checking butt weld crown or reinforcement height, checking undercut depth near the welding area, checking pit depth, and checking porosity.

Key Features & Capabilities

Fabricated from stainless steel with permanent markings for durability and legibility.
Equipped with a pointer and lock screw to hold the gauge in position for later reference.
Integrates four required weld measurements into a single compact tool.
Suitable for welding, maintenance, and quality departments.

Technical Specifications

Technical Parameter	Specification
Material	Stainless Steel
Finish	Polished
Butt Weld Crown / Reinforcement Height Range	0 – 6 mm
Reinforcement Height Least Count	0.5 mm
Undercut Depth Range	0 – 6 mm
Undercut Depth Least Count	0.5 mm
Porosity Size Comparison Range (Diameter)	1.5 mm & 3.0 mm
Graduated Scale Length	25 mm
Graduated Scale Least Count	1.0 mm
Accuracy	±0.25 mm
