MARAMETER 57B-15M PORTABLE THICKNESS GAGES
- Solid casting with ribbed frame provides strength and rigidity for accurate measurements
- 0.003 mm / .0001“ parallelism with tables up to 19 mm / .75“ diameter
- 283 g / 10 oz. dead weight load for constant gaging pressure
- 10 mm / .407“ diameter flat upper 54.0 mm / 2.125“ lower contacts
- Indicator mounts with adjustable back for quick positioning for each gaging requirement
- Digital indicator includes integrated wireless transmitter
- With lift lever so work can be easily placed between the table and contact
- Four inch throat depth for part clearance
Technical data
| Order no. | Product type | Measuring range mm | Throat depth mm | Graduation value mm | Measuring force (N) |
|---|---|---|---|---|---|
| 2050983 |
57B-14M
|
0 – 2.5
|
102 mm
|
0.002 mm
|
283gm / 10oz dead weight
|
| 2050985 |
57B-15M
|
0 – 25
|
102 mm
|
0.01 mm
|
283gm / 10oz dead weight
|
MARAMETER 57B-15 PORTABLE THICKNESS GAGES
- Solid casting with ribbed frame provides strength and rigidity for accurate measurements
- 0.003 mm / .0001“ parallelism with tables up to 19 mm / .75“ diameter
- 283 g / 10 oz. dead weight load for constant gaging pressure
- 10 mm / .407“ diameter flat upper 54.0 mm / 2.125“ lower contacts
- Indicator mounts with adjustable back for quick positioning for each gaging requirement
- Digital indicator includes integrated wireless transmitter
- With lift lever so work can be easily placed between the table and contact
- Four inch throat depth for part clearance
Technical data
| Order no. | Product type | Measuring range inches | Graduation value inch | Measuring force (N) |
|---|---|---|---|---|
| 2050982 |
57B-14
|
0 – .10″
|
.0001”
|
283gm / 10oz dead weight
|
| 2050984 |
57B-15
|
0 – 1″
|
.001″
|
283gm / 10oz dead weight
|

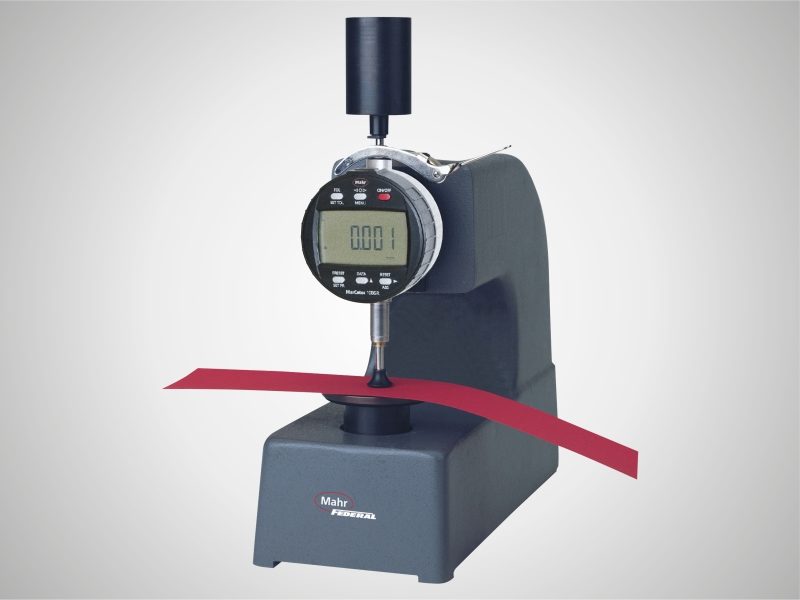

MARAMETER XLI-57B-15 PORTABLE THICKNESS GAGES
- Solid casting with ribbed frame provides strength and rigidity for accurate measurements
- 0.003 mm / .0001“ parallelism with tables up to 19 mm / .75“ diameter
- 283 g / 10 oz. dead weight load for constant gaging pressure
- 10 mm / .407“ diameter flat upper 54.0 mm / 2.125“ lower contacts
- Indicator mounts with adjustable back for quick positioning for each gaging requirement
- Digital indicator includes integrated wireless transmitter
- With lift lever so work can be easily placed between the table and contact
- Four inch throat depth for part clearance
| |
|||||
 |
 |
 |
 |
 |
 |
Technical data
| Order no. | Product type | Measuring range inches | Measuring range mm | Throat depth mm | Parallel error in µm | Measuring force (N) |
|---|---|---|---|---|---|---|
| 2057551 |
XLI-57B-15
|
0 – 1″
|
0 – 25
|
102 mm
|
3 µm
|
283 gm / 10 oz dead weight
|
