MARAMETER 75-P30 – DEPTH GAGE

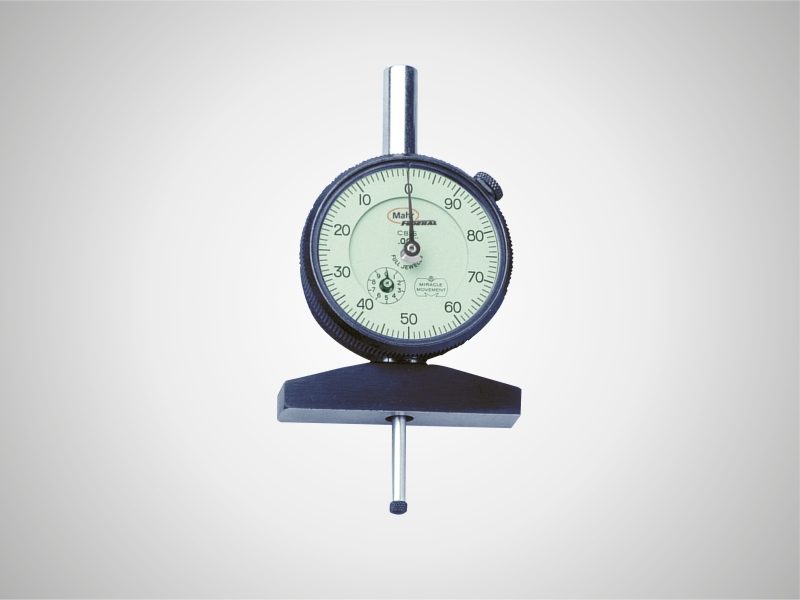

MARAMETER 75P-30 INDICATING DEPTH GAGE
  • Rectangular, flat base and radiused contact point
  • Supplied with contact point for measuring depths from the base as a reference
  • Contact points for other depths are available upon request


Technical data

Order no. Product type Measuring range inches Measuring bridge width inch Beam width Length of beam Graduation value inch Length of fixed measuring contact
2051088
75P-30
0 – .150″
0.56 inch
14 mm
64 mm
.0005″
0.13 inch



MARAMETER 75P-30M INDICATING DEPTH GAGE
  • Rectangular, flat base and radiused contact point
  • Supplied with contact point for measuring depths from the base as a reference
  • Contact points for other depths are available upon request

Technical Data

Order no. Product type Measuring range mm Measuring bridge width inch Beam width Length of beam Graduation value mm Length of fixed measuring contact
2051089
75P-30M
0 – 4
0.56 inch
14 mm
64 mm
0.01 mm
3 mm



MARAMETER 75P-55M

  • Single and multi-purpose bases with choice of comparative or direct measurement indicators
  • Collet mounting allows for interchanging indicators and bases to meet a wide range of requirements
  • Wide range of contact points available to cover any depth measurement
  • Setting masters available with anvil ground to specified depth (accuracy ±2.5µm/± .0001″)

Technical Data

Order no. Product type Measuring range mm Measuring bridge diameter mm Beam width Length of beam Graduation value mm
2051093
75P-50M
2,50
19 mm
50 mm
0.01 mm
2051095
75P-51M
2,50
19 mm
76 mm
0.01 mm
2051097
75P-52M
2,50
19 mm
102 mm
0.01 mm
2051099
75P-53M
2,50
19 mm
152 mm
0.01 mm
2051101
75P-54M
2,50
19 mm
203 mm
0.01 mm
2051103
75P-55M
2,50
19 mm
0.01 mm
2051105
75P-56M
2,50
32 mm
0.01 mm



MARAMETER 75P-35 – DEPTH GAGE

MARAMETER 75P-35M
  • Depth gages have three interchangeable contact points, allowing inspection of depths to 76 mm / 3“
  • Check depths against a setting

Technical Data

Order no. Product type Measuring range mm Measuring bridge width inch Beam width Length of beam Graduation value mm Length of fixed measuring contact
2051091
75P-35M
0 – 75
0.56 inch
14 mm
64 mm
0.01 mm
3 mm



MARAMETER 75P-35
  • Depth gages have three interchangeable contact points, allowing inspection of depths to 76 mm / 3“
  • Check depths against a setting

Technical Data

Order no. Product type Measuring range inches Measuring bridge width inch Beam width Length of beam Graduation value inch Length of fixed measuring contact
2051090
75P-35
0 – 3″
0.56 inch
14 mm
64 mm
.001″
0.13 inch
