• Extremely accurate due to the straight transfer of spindle movement to the inductive measuring system according to the Abbe principle
  • Universally applicable and extremely versatile
    – Each instrument spans a broad measuring range
    – Any dimension and fit can be very quickly and easily adjusted
  • Constant measuring force as a result of built-in spring, eliminating user influence
  • Maximum wear resistance due to non-contact positioning in conjunction with carbide tipped measuring faces

Technical data

Order no. Product type Application range mm Readings/Selectable resolution down to Measuring span in mm Measuring surface diameter Parallel error in µm Repeatability fw (µm) Measuring force

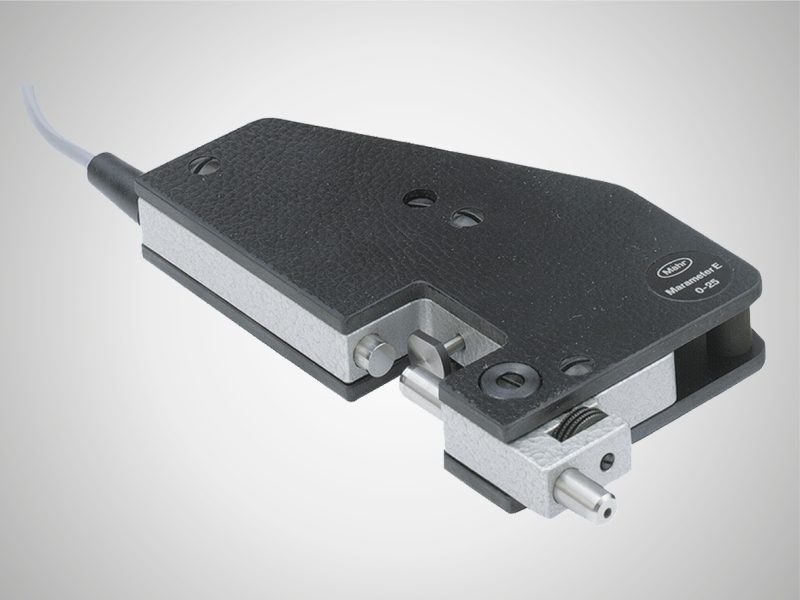

4453000
840 E
0 – 25
0.01 µm
0.5 mm
7.5 mm
0.3 µm
0.1 µm
4.5 N
