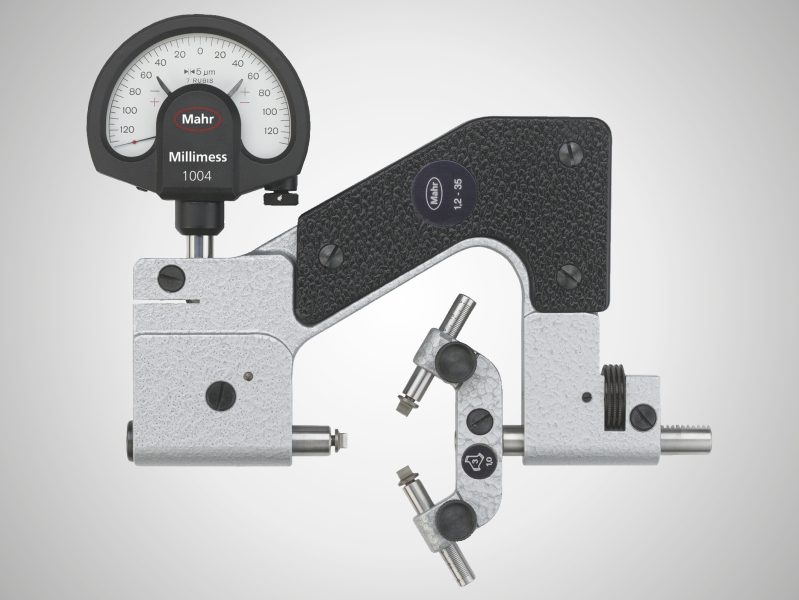

• Rugged, forged steel frame with heat insulators
  • Measuring spindle is mounted in long guideway with lever controlled retraction
  • Anvil spindle adjustable with thumbscrew via worm and rack, for mounting interchangeable support yokes
  • Measuring spindle and anvil are made of hardened stainless steel with mounting bore for insertion of interchangeable anvils
  • Anvil spindle can easily be fine adjusted
  • Constant measuring force as a result of built-in spring, eliminating user influence
  • Maximum wear resistance due to non-contact positioning

Technical data

Order no. Product type Application range mm Measuring span in mm Repeatability fw (µm) Measuring force
4511000
853
1.2 – 35
8 mm
2 µm
7.5 N
4511001
853
35 – 75
8 mm
2 µm
7.5 N
