MARAMETER DEPTH GAGE 75B-1 Available with dial indicator (75B-1 Models) or Maxμm®III and μMaxμm®II digital electronic indicators (EMD-75B and XLI-75B Models) 89 x 102 mm / 3.50 x 4“ hardened, ground work surface provides excellent reference surface Four #10-32 tapped holes provided for mounting part location fixturing Indicator vertically adjustable over 32 mm / 1.25“

MARAMETER DEPTH GAGE 75B-1

Available with dial indicator (75B-1 Models) or Maxμm®III and μMaxμm®II digital electronic indicators (EMD-75B and XLI-75B Models)
89 x 102 mm / 3.50 x 4“ hardened, ground work surface provides excellent reference surface
Four #10-32 tapped holes provided for mounting part location fixturing
Indicator vertically adjustable over 32 mm / 1.25“
Two contact points provided, 6 mm / .25“ and 32 mm / 1.25“ to check features up to 50 mm / 2“ deep

Technical Data

Order no.	Product type	Measuring range inches	Measuring bridge width inch	Beam width	Length of beam	Graduation value inch	Measuring depth mm
2051077	75B-1	0 – 1″	3.5 inch	89 mm	102 mm	.001″	25 mm

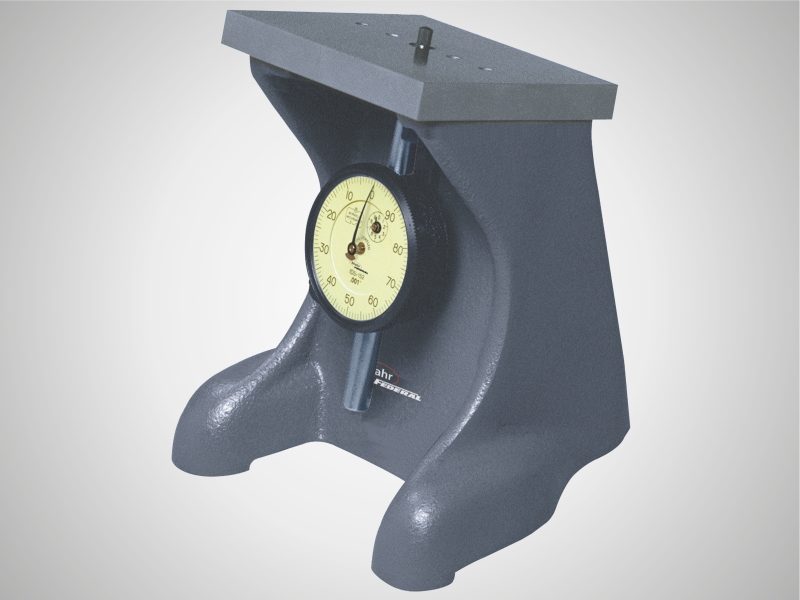

MARAMETER DEPTH GAGE 75B-1M

Available with dial indicator (75B-1 Models) or Maxμm®III and μMaxμm®II digital electronic indicators (EMD-75B and XLI-75B Models)
89 x 102 mm / 3.50 x 4“ hardened, ground work surface provides excellent reference surface
Four #10-32 tapped holes provided for mounting part location fixturing
Indicator vertically adjustable over 32 mm / 1.25“
Two contact points provided, 6 mm / .25“ and 32 mm / 1.25“ to check features up to 50 mm / 2“ deep

Technical Data

Order no.	Product type	Measuring range mm	Measuring bridge width inch	Beam width	Length of beam	Graduation value mm	Measuring depth mm
2051078	75B-1M	0 – 25	3.5 inch	89 mm	102 mm	0.01 mm	25 mm

MARAMETER DEPTH GAGE(XLI-75B-2)

Available with dial indicator (75B-1 Models) or Maxμm®III and μMaxμm®II digital electronic indicators (EMD-75B and XLI-75B Models)
89 x 102 mm / 3.50 x 4“ hardened, ground work surface provides excellent reference surface
Four #10-32 tapped holes provided for mounting part location fixturing
Indicator vertically adjustable over 32 mm / 1.25“
Two contact points provided, 6 mm / .25“ and 32 mm / 1.25“ to check features up to 50 mm / 2“ deep

Technical Data

Order no.	Product type	Measuring range inches	Measuring range mm	Measuring bridge width inch	Beam width	Length of beam	Measuring depth mm
2051888	EMD-75B-1			3.5 inch	89 mm	102 mm
2051889	EMD-75B-1D			3.5 inch	89 mm	102 mm
2057552	(XLI-75B-1)	0 – 1″	0 – 25	3.5 inch	89 mm	102 mm	50 mm
2057553	(XLI-75B-2)	0 – .5″	0 – 12,5				38 mm
