MARCAL 16 ER DIGITAL CALIPER

MARCAL 16 ER DIGITAL CALIPER

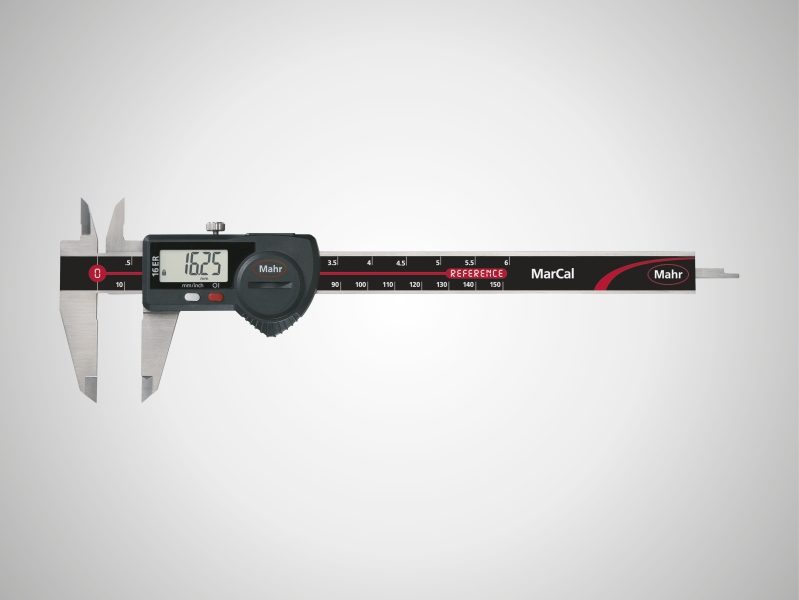

The Mahr MarCal 16 ER is a precision digital caliper designed for accurate dimensional measurement. Constructed with a hardened stainless steel slide and beam, this instrument features a high-contrast digital display and an integrated Reference System for immediate measurement readiness.

Key Features & Capabilities

• Reference System: Enables immediate measurement capability upon activation.
• Construction: Hardened stainless steel slide and beam with lapped guideways.
• Protection: Raised guideways protect the scale; integrated dirt wipers in the slide ensure longevity.
• Measurement Functions: Includes inside measurement blades, step measuring function, and a locking screw located above the slide.
• Data Connectivity: Equipped with USB, Opto RS232C, and Digimatic data transmission interfaces.
• Display: High-contrast digital display with 8.5 mm digit height.
• Standardization: Models 4103014 through 4103019 comply with DIN 862 standards; models 4103020 and 4103021 comply with factory standards.

Technical Specifications

Functions

• ON/OFF
• AUTO-ON / OFF
• RESET (set display to zero)
• mm/inch toggle
• LOCK function (key lock)
• DATA (data transmission via connection cable)

Included Accessories

• Instruction manual
• Battery
• Case
