MARCAL 18 N – WORKSHOP VERNIER CALIPERS

MARCAL 18 N WORKSHOP VERNIER CALIPERS Vernier and main scale have a satin chrome finish for glare free reading Locking screw above Rounded measuring blades for inside measurements Measuring surfaces made of steel Slide and beam made of hardened stainless steel Raised guideway for the protection of the scale up to 1000 mm delivered with

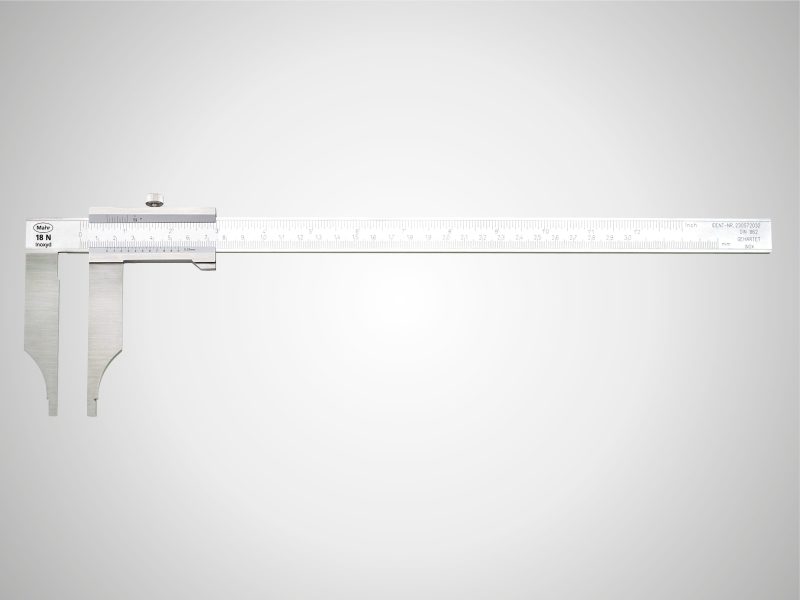

MARCAL 18 N WORKSHOP VERNIER CALIPERS

  • Vernier and main scale have a satin chrome finish for glare free reading
  • Locking screw above
  • Rounded measuring blades for inside measurements
  • Measuring surfaces made of steel
  • Slide and beam made of hardened stainless steel
  • Raised guideway for the protection of the scale
  • up to 1000 mm delivered with a case, over 1000 mm individually packed
 Workshop vernier calipers

Technical data

Order no. Measuring range mm Readings mm Error limit (mm) Standard
4112200
0 – 200
0.02 mm
0.05 mm
Factory standard
4112201
0 – 300
0.02 mm
0.05 mm
Factory standard
4112210
0 – 500
0.05 mm
0.07 mm
DIN 862
4112211
0 – 800
0.05 mm
0.1 mm
DIN 862
4112212
0 – 1000
0.05 mm
0.12 mm
DIN 862
4112213
0 – 1500
0.05 mm
0.18 mm
DIN 862
4112214
0 – 2000
0.05 mm
0.22 mm
DIN 862

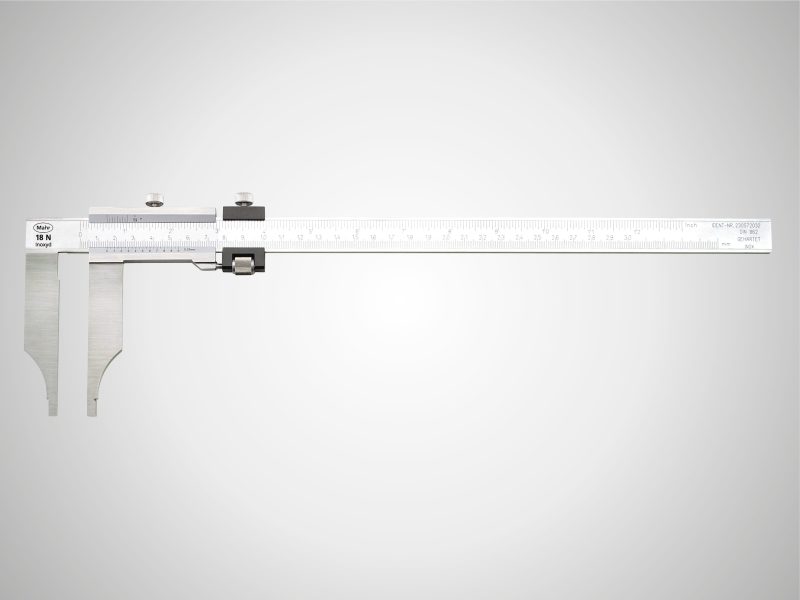

MARCAL 18 N WORKSHOP VERNIER CALIPERS

  • Measuring blades for outside measurements
  • High contrast analog display
  • Locking screw above
  • Rounded measuring blades for inside measurements
  • Slide and beam made of hardened stainless steel
  • Immediate measurements due to the Reference System
  • Raised guideway for the protection of the scale
  • Excellent resistance against dust, coolants and lubricants
  • Dirt wipers are integrated in the slide
  • up to 1000 mm delivered with a case, over 1000 mm individually packed
Workshop vernier calipers

Technical data

Order no. Measuring range mm Measuring range inches Readings mm Vernier value inch Error limit (mm) Error limit inches Standard
4112220
0 – 300
0.02 mm
0.05 mm
Factory standard
4112221
0 – 500
0.02 mm
0.06 mm
Factory standard
4112222
0 – 800
0.02 mm
0.08 mm
Factory standard
4112223
0 – 1000
0.02 mm
0.08 mm
Factory standard
4112224
0 – 1500
0.02 mm
0.1 mm
Factory standard
4112225
0 – 2000
0.02 mm
0.12 mm
Factory standard
4112230
0 – 300
0 – 12″
0.02 mm
.001″
0.05 mm
.002″
Factory standard
4112231
0 – 500
0 – 20″
0.02 mm
.001″
0.06 mm
.0025″
Factory standard
4112232
0 – 800
0 – 32″
0.02 mm
.001″
0.08 mm
.003″
Factory standard
4112233
0 – 1000
0 – 40″
0.02 mm
.001″
0.08 mm
.003″
Factory standard
4112234
0 – 1500
0 – 60″
0.02 mm
.001″
0.1 mm
.004″
Factory standard
4112235
0 – 2000
0 – 80″
0.02 mm
.001″
0.12 mm
.005″
Factory standard
