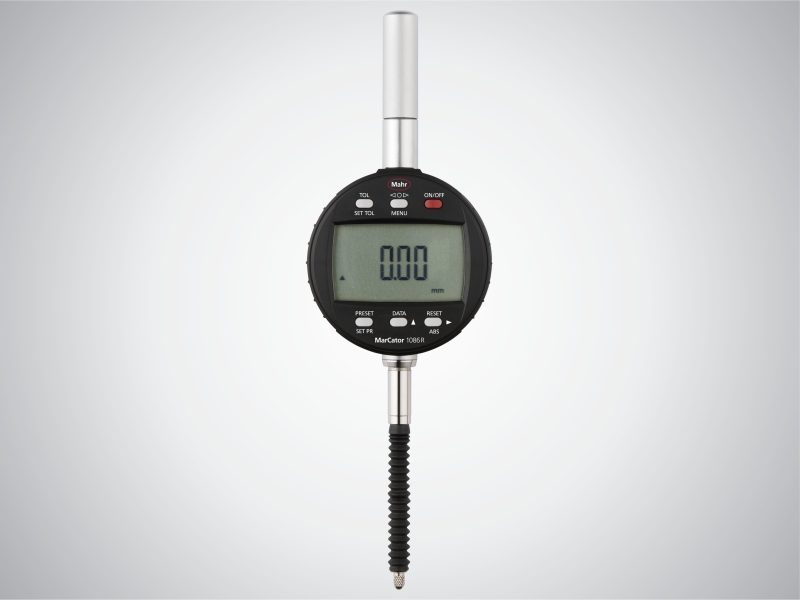

MARCATOR 1086 RI / 1086 WRI – DIGITAL INDICATOR, INTEGRATED WIRELESS

MARCATOR 1086 RI DIGITAL INDICATOR Integrated wireless transmitter High contrast LCD Operating and display unit (bezel) can be rotated through 280° Mounting shank and measuring spindle are both made of hardened stainless steel Immediate measurements due to the Reference System             Technical data Order no. Product type Measuring span in

MARCATOR 1086 RI DIGITAL INDICATOR

  • Integrated wireless transmitter
  • High contrast LCD
  • Operating and display unit (bezel) can be rotated through 280°
  • Mounting shank and measuring spindle are both made of hardened stainless steel
  • Immediate measurements due to the Reference System
 Digital indicator
 Digital indicator  Digital indicator  Digital indicator  Digital indicator  Digital indicator Digital indicator Digital indicator Digital indicator

Technical data

Order no. Product type Measuring span in mm Measuring span (inches) Resolution Resolution inches Error limit (mm) Repeatability mm Standard Measuring force (N) IP protection category Height of digits
4337624
1086 Ri
12.5 mm
.5″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0.004 mm
0.001 mm
Factory standard
0.65 – 0.9
IP 42
11 mm
4337625
1086 Ri
25 mm
1″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0.004 mm
0.001 mm
Factory standard
0.65 – 1.15
IP 42
11 mm
4337626
1086 Ri
50 mm
2″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0.007 mm
0.001 mm
Factory standard
1.25 – 2.7
IP 42
11 mm
4337627
1086 Ri
100 mm
4″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0.008 mm
0.001 mm
Factory standard
1.8 – 3.5
IP 42
11 mm
4337628
1086 Ri
25 mm
1″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0.004 mm
0.001 mm
Factory standard
0 – 0
IP 42
11 mm

Functions

  • ON/OFF
  • RESET (set display to zero)
  • mm/inch
  • Reversal of counting direction
  • PRESET (for entering a numerical value)
  • TOL (enter tolerance limit values)
  • <0> (tolerance GO / NO GO display mode)
  • ABS (display can be set to zero without losing reference to preset)
  • DATA (data transmission via connection cable)
  • Factor (adjustable)
  • LOCK (individual button lock)

MARCATOR 1086 RI DIGITAL INDICATOR

  • Integrated wireless transmitter
  • High contrast LCD
  • Operating and display unit (bezel) can be rotated through 280°
  • Mounting shank and measuring spindle are both made of hardened stainless steel
  • Immediate measurements due to the Reference System
 Digital indicator


Technical data

Order no. Product type Measuring span in mm Measuring span (inches) Resolution Resolution inches Error limit (mm) Repeatability mm Standard Measuring force (N) IP protection category Height of digits
4337134
1086 Ri
12.5 mm
.5″
0.01 mm
.0005″
0.02 mm
0.01 mm
Factory standard
0.65 – 0.9
IP 42
11 mm
4337135
1086 Ri
25 mm
1″
0.01 mm
.0005″
0.02 mm
0.01 mm
Factory standard
0.65 – 1.15
IP 42
11 mm
4337136
1086 Ri
50 mm
2″
0.01 mm
.0005″
0.02 mm
0.01 mm
Factory standard
1.25 – 2.7
IP 42
11 mm
4337137
1086 Ri
100 mm
4″
0.01 mm
.0005″
0.02 mm
0.01 mm
Factory standard
1.6 – 3.5
IP 42
11 mm

Functions

  • ON/OFF
  • RESET (set display to zero)
  • mm/inch
  • Reversal of counting direction
  • PRESET (for entering a numerical value)
  • TOL (enter tolerance limit values)
  • <0> (tolerance GO / NO GO display mode)
  • ABS (display can be set to zero without losing reference to preset)
  • DATA (data transmission via connection cable)
  • Factor (adjustable)
  • LOCK (individual button lock)

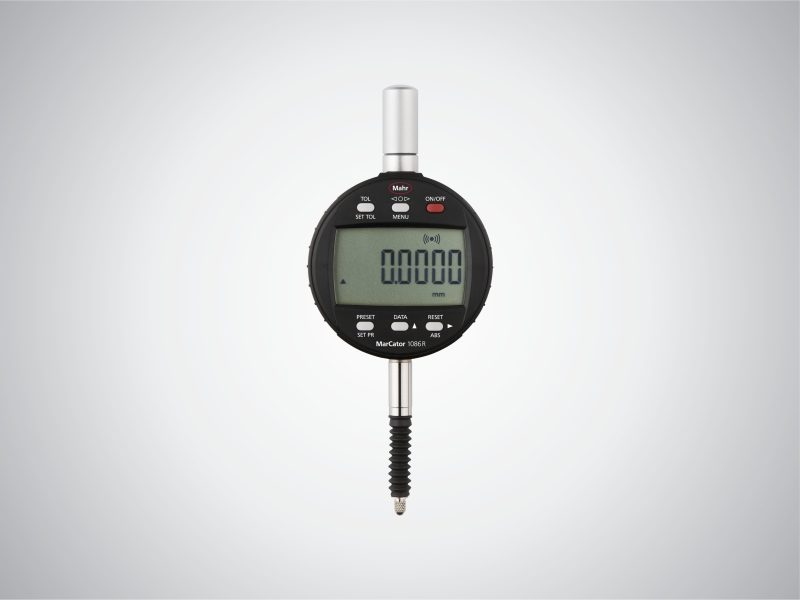

MARCATOR 1086 WRI DIGITAL INDICATOR

  • Integrated wireless transmitter
  • High contrast LCD
  • Operating and display unit (bezel) can be rotated through 280°
  • Mounting shank and measuring spindle are both made of hardened stainless steel
  • Immediate measurements due to the Reference System
 Digital indicator


Technical data

Order no. Product type Measuring span in mm Measuring span (inches) Resolution Resolution inches Error limit (mm) Repeatability mm Standard Measuring force (N) IP protection category Height of digits
4337142
1086 WRi
12.5 mm
.5″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0.004 mm
0.001 mm
Factory standard
0.65 – 1.4
IP 54
11 mm
4337143
1086 WRi
25 mm
1″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0.004 mm
0.001 mm
Factory standard
1 – 2.25
IP 54
11 mm

Functions

  • ON/OFF
  • RESET (set display to zero)
  • mm/inch
  • Reversal of counting direction
  • PRESET (for entering a numerical value)
  • TOL (enter tolerance limit values)
  • <0> (tolerance GO / NO GO display mode)
  • ABS (display can be set to zero without losing reference to preset)
  • DATA (data transmission via connection cable)
  • Factor (adjustable)
  • LOCK (individual button lock)

MARCATOR 1086 WRI DIGITAL INDICATOR

  • Integrated wireless transmitter
  • High contrast LCD
  • Operating and display unit (bezel) can be rotated through 280°
  • Mounting shank and measuring spindle are both made of hardened stainless steel
  • Immediate measurements due to the Reference System
Digital indicator
 Digital indicator  Digital indicator  Digital indicator  Digital indicator  Digital indicator Digital indicator Digital indicator

Technical data

Order no. Product type Measuring span in mm Measuring span (inches) Resolution Resolution inches Error limit (mm) Repeatability mm Standard Measuring force (N) IP protection category Height of digits
4337147
1086 WRi
12.5 mm
.5″
0.01 mm
.0005″
0.02 mm
0.02 mm
Factory standard
0.65 – 1.4
IP 54
11 mm
4337148
1086 WRi
25 mm
1″
0.01 mm
.0005″
0.02 mm
0.02 mm
Factory standard
1 – 2.25
IP 54
11 mm

Functions

  • ON/OFF
  • RESET (set display to zero)
  • mm/inch
  • Reversal of counting direction
  • PRESET (for entering a numerical value)
  • TOL (enter tolerance limit values)
  • <0> (tolerance GO / NO GO display mode)
  • ABS (display can be set to zero without losing reference to preset)
  • DATA (data transmission via connection cable)
  • Factor (adjustable)
  • LOCK (individual button lock)
